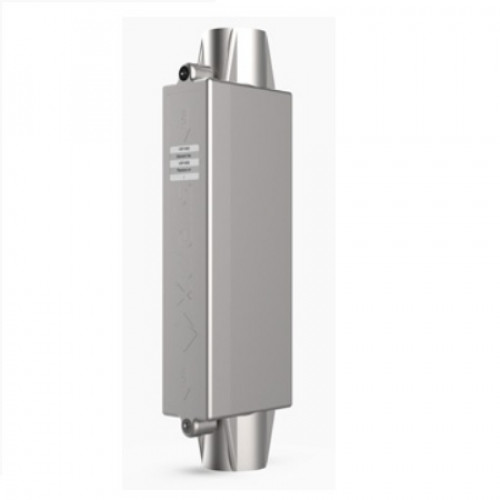

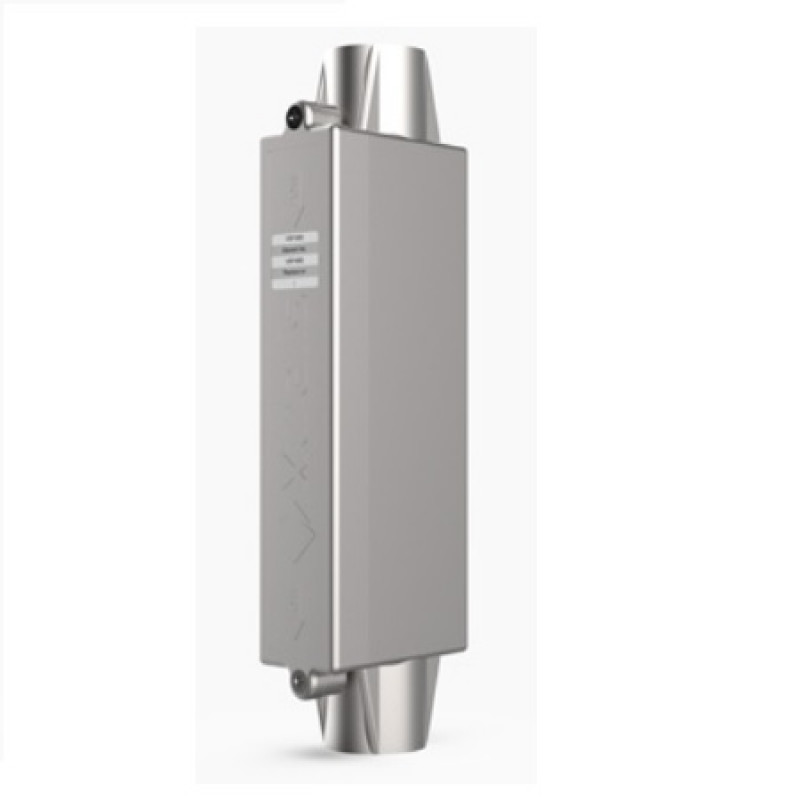

VSP-850-M, VESDA In-line Filter, Metal

VSP-850-M, VESDA In-line Filter, Metal

Xtralis VESDA in-line filters provide a simple and cost-effective solution for addressing a variety of harsh environments with high levels of airborne contaminants.

VESDA in-line filters improve detector longevity and reduce maintenance frequency and provide superior performance compared to other in-line filtration solutions. VESDA filters have a tapered inlet and can easily be fitted in line with the sampling pipe without the need for additional pipe fittings. This keeps the cost of installation at an absolute minimum.

Xtralis VESDA in-line filters also have replaceable filter elements. This means that they can be replaced without removing the filter from the pipe network, thus keeping maintenance simple and cost-effective.

The filter’s elegant design integrates smoothly into the installation and up to four filters can be installed side-by-side on multi-pipe installations. Xtralis inline filters are available with Metal.

Key Features:

• Suitable for all Xtralis VESDA Aspirating Smoke Detectors
• Improved detector longevity in applications with high levels of airborne contamination
• Reduces maintenance intervals and total cost of ownership
• Does not require additional pipe fittings
• Compatible with metric (25mm OD) and imperial (1” OD) pipes

Specification:

• Dimensions: 90mm x 63mm x 30mm (3.5 in. x 2.5 in. x 1.2 in.)
