FERMAX 5225, FPAC-MAX FINGERPRINT READER

FERMAX 5225, FPAC-MAX FINGERPRINT READER

DESCRIPTION

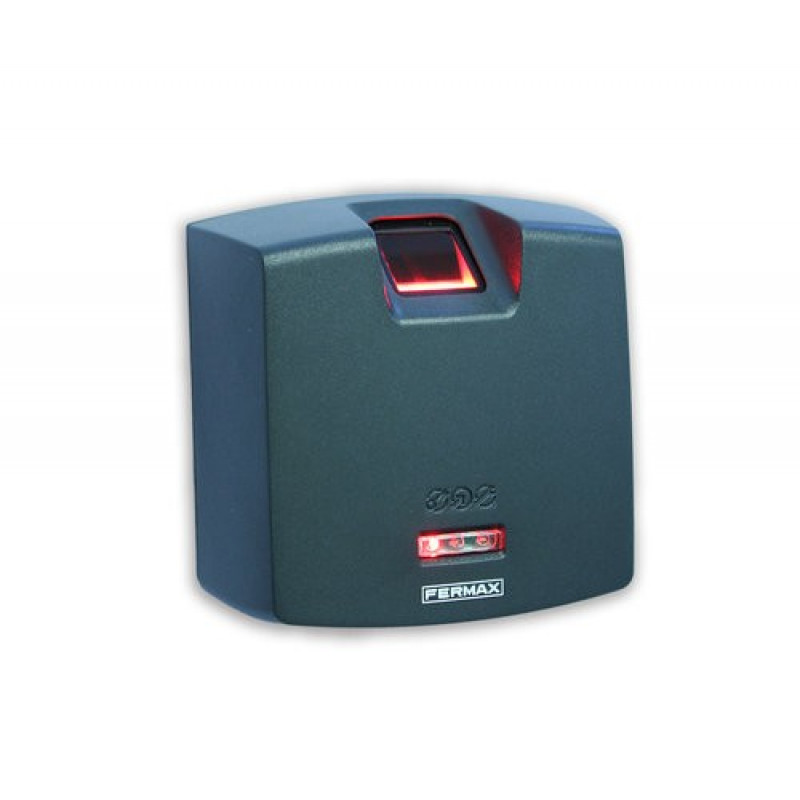

The FPAC-MAX is a biometric fingerprint reader equipped with a high quality optical sensor and ISO / IEC 14443A and MIFARE® proximity reader. Users can be recognized by comparing their fingerprint with those registered in the reader',s memory (1: N mode) or with those registered on the MIFARE® card (1: 1 mode). The reader can store up to 1,900 fingerprints and is still able to recognize users relatively quickly. If 1: 1 mode is applied, the third (highest) recognition level is applied and maximum privacy is achieved.

The reader connects to the AC-MAX CU access controller via RS-485 (2-wire) power (2-wire) and Ethernet (UTP). Footprint registrations and deletions are managed by IP through the PC. The IP communication with the FPAC-MAX reader is encrypted under the AES128 CBC standards, which guarantee high resistance to unauthorized decryption. The configuration and management of the fingerprint database are carried out from the AC-MAX management software.

NOTE: Before using the fingerprint reader it is necessary to check that the application of the device in certain conditions complies with the law.

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
