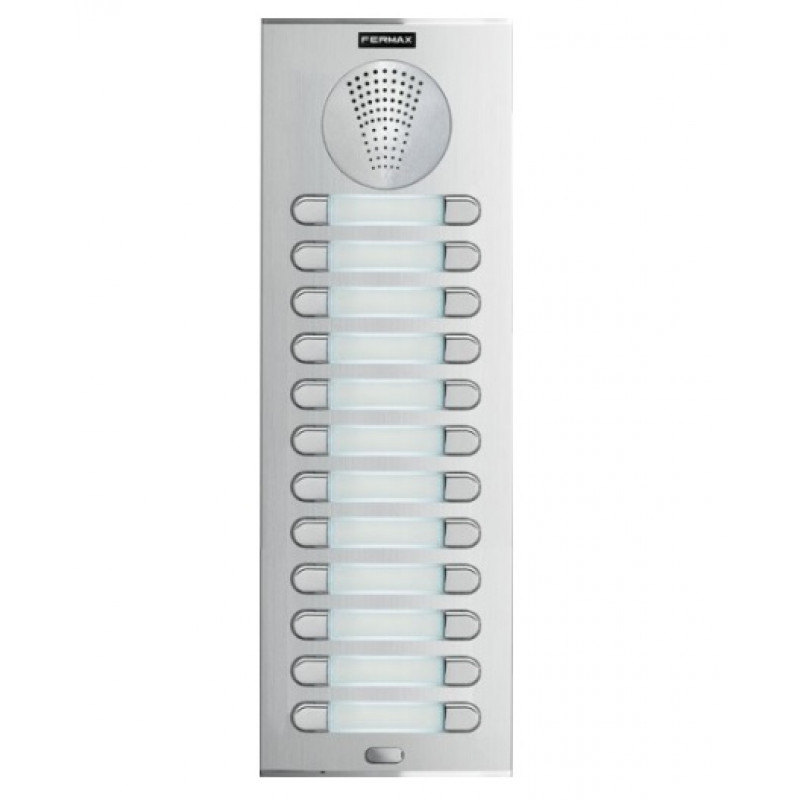

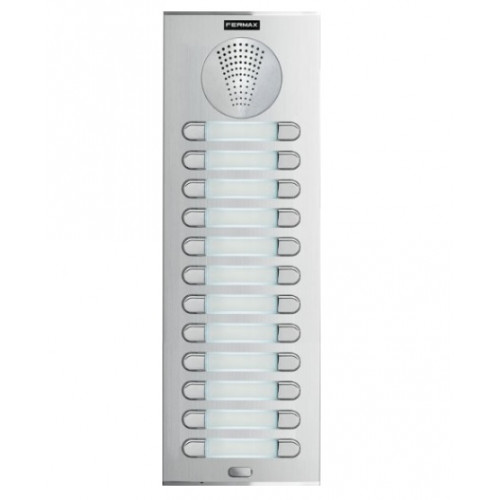

Fermax, 71151, City Panel 4+N S8 CP 212

Fermax, 71151, City Panel 4+N S8 CP 212

The 71151 is a City Panel 4+N S8 CP 212 .Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call , etc.This new panel model is more robust, more luxurious and higher design and functional quality. The new design, in its video entry version, includes audio and video functions in the same module.
Injected zamak chrome finish Call buttons, in line with the curved panel profile. Sealed for outdoors.Equipped with special gold plated contacts for lasting durability.Pressing the call button is confirmed by an acoustic signal from the amplifier.Pushbuttons include a polycarbonate card slot (front access) to insert a label with the home owner’s name and door number. Built in lighting lets you see the card slots, even in pitch dark.

Key Features:

• Colour aluminium.
• More Robust.

Specifications:

• Lighting LEDs consumption: 3,5 mA per card slot.
• Series 8 Panel.
  • Panel measurements: 130x389 mm (width-height):
  • Flush-fit box dimensions: 115x375x45 mm (height-width-depth).
  • Surface mounted box dimensions: 130x389x33 mm (height-width-depth).
• Power supply:
  • Audio: 12 Vac
  • Video: 18 Vdc
• Consumption:
  • in standby: 180 mA.
  • call: 700 mA.
  • active audio: 480 mA.
  • audio+video: 560 mA (camera consumption: 80mA)
  • Card slot module LED lighting: 35 mA per module.
• IPK-437
• Audio capacity home-outdoor panel: 2W
• Audio capacity outdoor panel-home: 0.15W
• Two-way volume control
• Operating temperature: -10 to 60 ºC.
