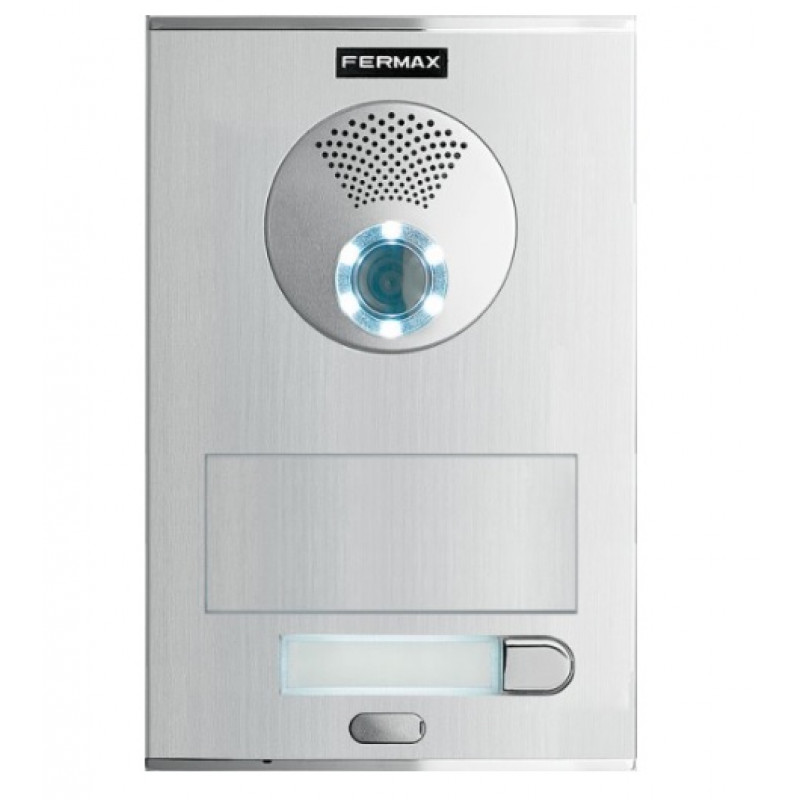

Fermax, 70757, City Panel VDS Colour S4 CVP 101
- Brand:Fermax
- Product Code:70757
- Availability:Please Call or Email Us to Check Availability
Fermax, 70757, City Panel VDS Colour S4 CVP 101
The 70757 is a City Panel VDS Colour S4 CVP 101.Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call , etc.Incorporates COLOUR camera with builtin lighting and pan&tilt regulation system to adjust the camera lens.This new panel model is more robust, more luxurious and higher design and functional quality. The new design, in its video entry version, includes audio and video functions in the same module.
Injected zamak chrome finish Call buttons, in line with the curved panel profile. Sealed for outdoors.Equipped with special gold plated contacts for lasting durability.Pressing the call button is confirmed by an acoustic signal from the amplifier.Pushbuttons include a polycarbonate card slot (front access) to insert a label with the home owner’s name and door number. Built in lighting lets you see the card slots, even in pitch dark.
Key Features:
- Colour aluminium.
- More Robust.
Specifications:
- Video
- Resolution: 500 lines.
- Sensor: 1/3” color CMOS.
- Effective pixels: 469K
- Minimum external illumination: 1 lux.
- SNR >45dB.
- Frame rate 25 fps.
- Auto iris.
- Auto BLC.
- View angle 68º H, 51ºV.
- Color night vision through white led.
- Lighting LEDs consumption: 3,5 mA per card slot.
- Series 4 Panel.
- Panel measurements: 130x199 mm (widthheight):
- Flushfit box dimensions:: 115x185x45 mm (heightwidthdepth).
- Surface mounted box dimensions: 130x199x33 mm (heightwidthdepth).
- Power supply: 18 Vdc
- Consumption:
- in standby: 40 mA.
- call: 170 mA.
- active audio: 300 mA.
- audio+video: 380 mA (camera consumption: 80mA)
- Card slot module LED lighting: 35 mA per module.
- IPK437
- Audio capacity homeoutdoor panel: 2W
- Audio capacity outdoor panelhome: 0.15W
- Twoway volume control
- Operating temperature: 10 to 60 ºC.
