Fermax, 1438, 1/W Colour WAY-FI Video Kit Panel

Fermax, 1438, 1/W Colour WAY-FI Video Kit Panel

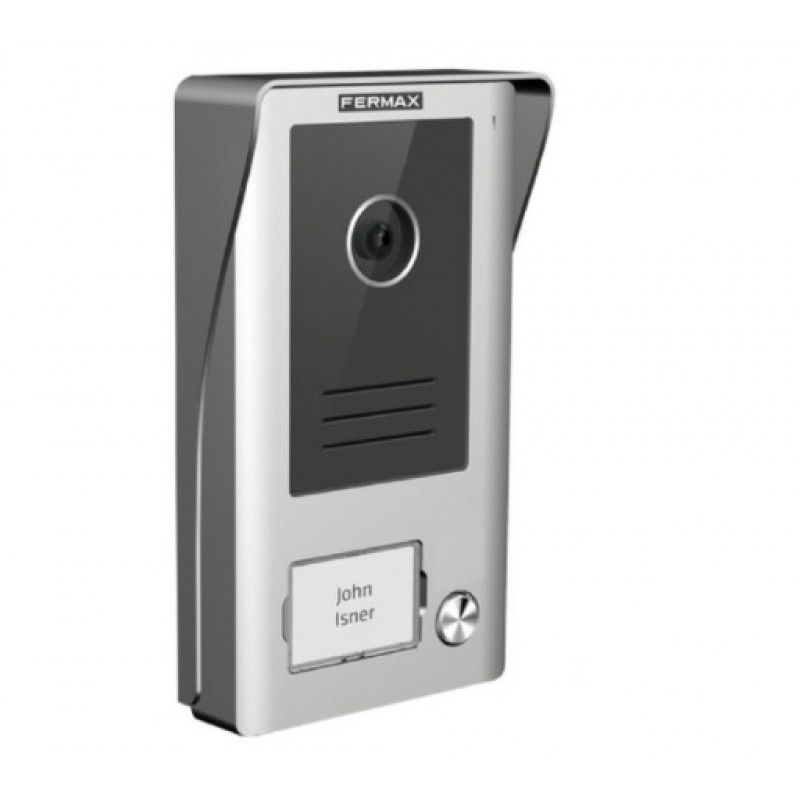

The 1438 is 1/W WAY-FI Colour Video Outdoor Panel with Rain Hood.

Specifications:

• Dimensions (Width x Height x Depth): 94 x 162 x 34 mm (with rainhood)
• Installation: Surface. Rain hood included and necessary for surface mounting
• IP / IK rating: IP 44 / IK 07
• Finish: Aluminium
• Electric lock activation: Yes (output 12 Vdc 250 mA, connections S+, S-). Activation time (1-8 s.)
• Dry contact relay for 2nd door activation (garage): Yes. Configurable as Normally Open/Close. Activation time (1-8 s.)
• Exit button Yes. Electric lock (S+, S-) is activated while pressing. Connections PL, S+
• Camera: CMOS, resolution 900 TVL. Wide angle (H=120º; V=72º). White LEDs (6) for camera illumination by light sensor automatic activation.
• Set Cardholder + Pushbutton: Cardholder removable from the front and pushbutton both backlighted by blue leds. Backlight automatic activation by light sensor.
• Secondary entry panel: Yes (1 additional panel)
• Possibility of additional analogue cameras: Yes (1 additional camera in each panel)
• Loudspeaker volume adjustment: Yes
• Operating temperature: [-20ºC, +55ºC]
• Maximum current of the electric lock: 250 mA holding current.
