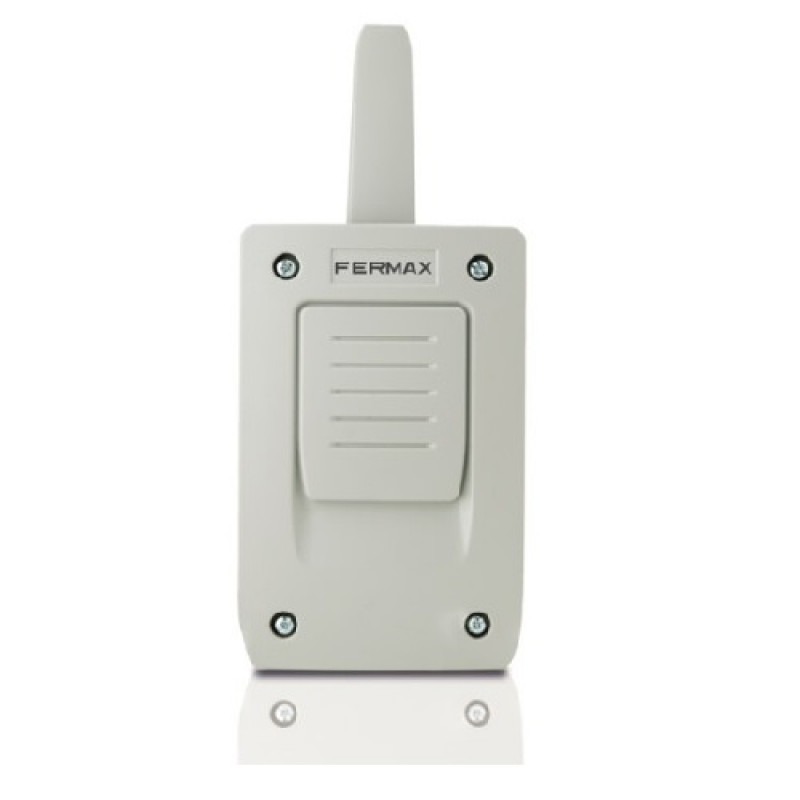

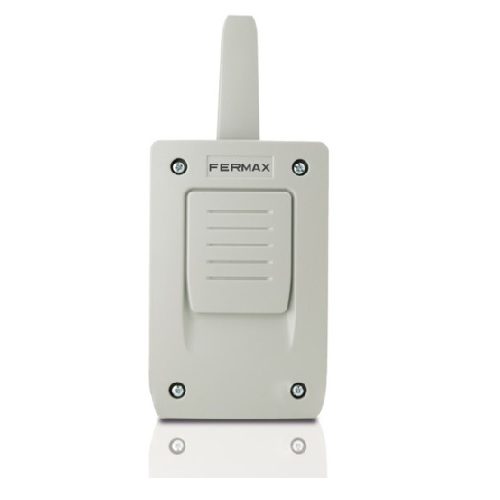

Fermax, 5266, RF-Wiegand Receiver 12VDC
- Brand:Fermax
- Product Code:5266
- Availability:Please Call or Email Us to Check Availability
Fermax, 5266, RF-Wiegand Receiver 12VDC
Radiofrequency interface to integrating AXESKEY 868Mhz range distance’s remote controls in an Access control central, AC Plus ref. 4410 next to the door controller ref. 4420, or directly in the IP_AXES systems.
It also allows to add hands-free identifiers with the corresponding HF Hands-free antenna.
The receiver codifies the emitter’s signal in three different protocols depending on its configuration: Clock&Data, Wiegand 26 and Wiegand 37.
Technical Specifications:
- Power supply: 12V dc (9Vdc-21Vdc)
- Frequency: 868,35MHz
- Consumption in standby / functioning: 14mA/36mA
- Functioning temperature: -20ºC to +85ºC
- Tightness: IP54 (IP65 with gland)
- Dimensions: 82x190x40mm
