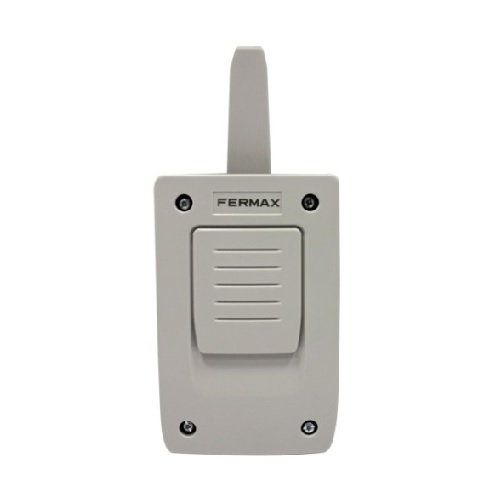

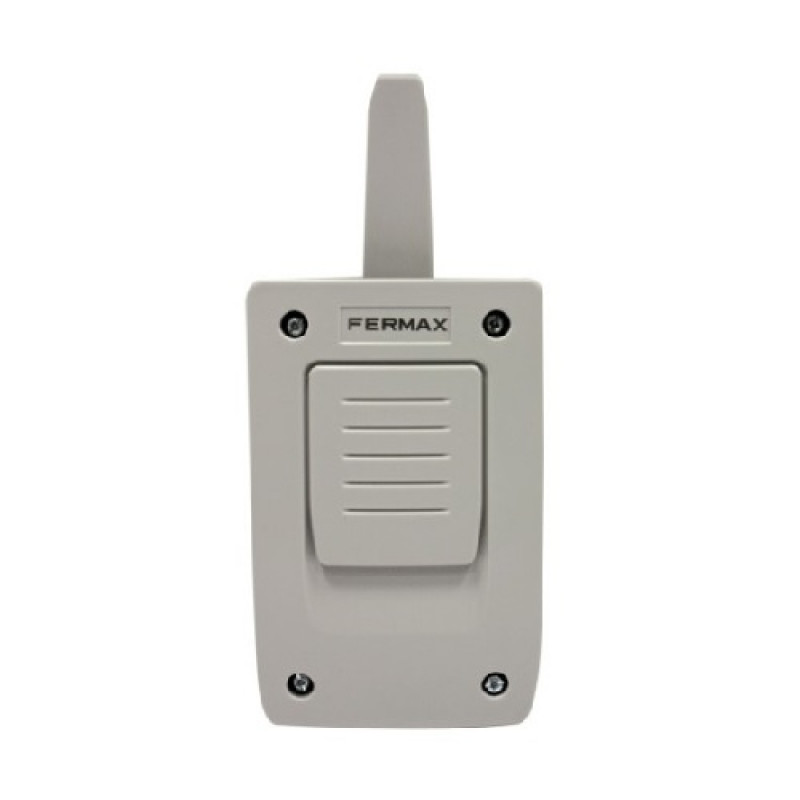

Fermax, 5250, RF Basic-2B Receiver 12-24CV
- Brand:Fermax
- Product Code:5250
- Availability:Please Call or Email Us to Check Availability
Fermax, 5250, RF Basic-2B Receiver 12-24CV
Autonomous receiver supplied by 12/24Vac/dc that allows to manage up to 500 codes from 868Mhz RF transmitters.
A channel (emitter pushbutton) can activate one or another relay, or both relays at the same time.
It allows to opening remotely pedestrian or vehicular doors through a remote control up to 100 metres.
The receiver also allows a manual programming or via radio programming.
The receiver includes 2 relays as standard: one configured as monostable and the second relay configured as monostable=impulse or bistable via a jumper (imp/bis) in the same receiver.
Monostable=impulse activates the relay during 2 seconds per each pulse of the emitter.
Bistable. Relay is activated and the relay is deactivated per each pulse of the emitter.
Technical Specifications:
- BASIC-2B
- Frequency: 868,35MHz
- Codification: High security changing code
- Memory: 500 codes
- Number of relays: 2 relays
- Power Supply: 12/24Vac/dc ±10%
- Relay contacts: 1A
- Consumption in standby / functioning: 60mA / 90mA
- Functional temperature: -20ºC to +85ºC
- Tightness: IP54 (IP65 with rubber gasket)
- Dimensions: 63x74x25mm
- Box dimensions: 82x190x40mm
