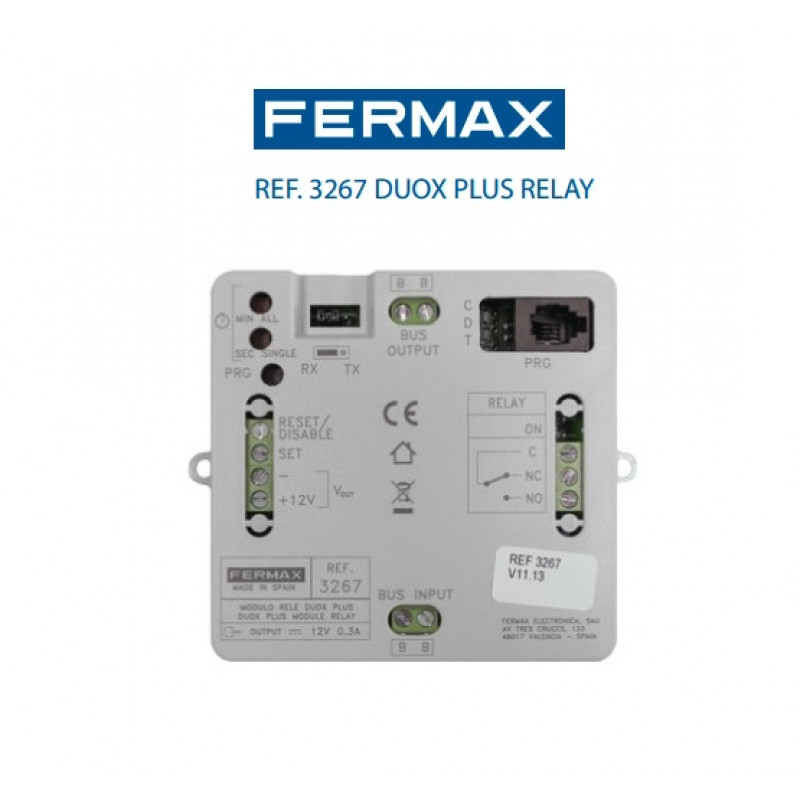

FERMAX 3267, DUOX PLUS RELAY
- Brand:Fermax
- Product Code:FER3267
- Availability:Please Call or Email Us to Check Availability
FERMAX 3267, DUOX PLUS RELAY
DESCRIPTION
The DUOX PLUS Relay allows for dry contacts in DUOX PLUS system, with various operating and activation modes to be configured: - Relay activation using commands generated from the residential terminals, entry panels or guard units. - External activation using buttons, additional external switches, etc. The DUOX PLUS relay can be installed in any part of the DUOX PLUS bus. You can install one or several relays: by apartment, block or installation.
System: DUOX PLUS (2 wires digital).
TECHNICAL SPECIFICATIONS
- Power supply: 18 - 24 Vdc (non-polarised, via the BUS INPUT or BUS OUTPUT).
- Consumption:
* In standby: 1,24 W.
*Maximum: 4,4 W.
- Operating temperature: [0, 40ºC].
- IP Address: 20.
- (+12V): Auxiliary voltage output 12Vdc (300 mA max).
- Dry contact relay:
- C: Common.
- NC: Normally Closed.
- NO: Normally Open.
* Maximum current 3A.
* Maximum voltage 250 VAC or 30 VDC.
