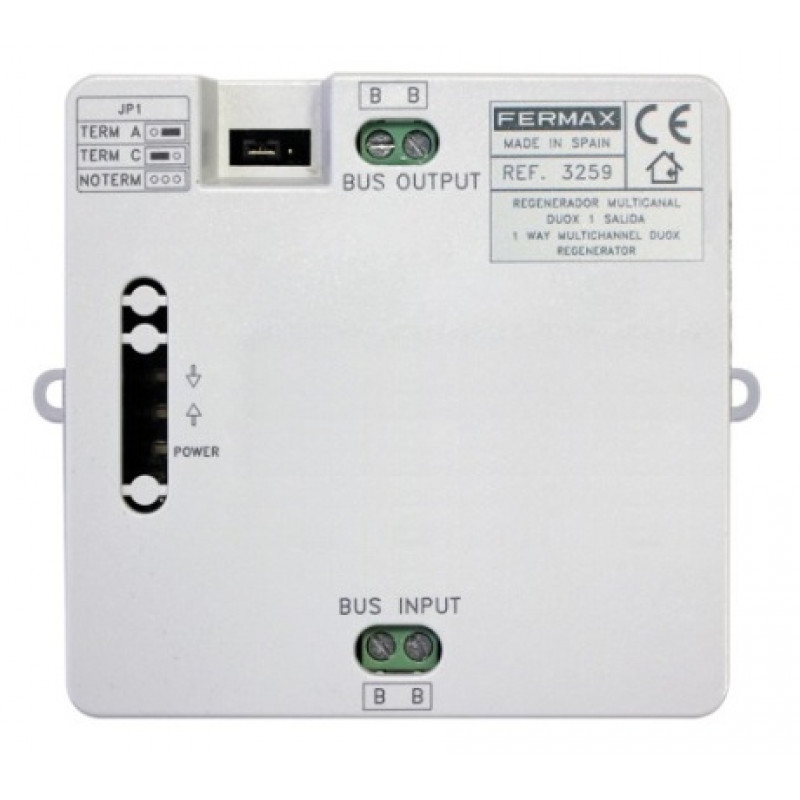

Fermax, 3259, 1 Way Duox Multichannel Regenerator

Fermax, 3259, 1 Way Duox Multichannel Regenerator

Device that enables regenerating the Duox signal in both directions, isolating different sections of the installation and expanding terminal distances and capacities. Inputs and outputs get isolated as protection against short circuits, load and signal reflections.It generates an additional calling channel between the panel and the apartment when used to isolate a block or an individual apartment. Thus, it is possible to hold a conversation on each BI or apartment without it simultaneously.It includes 1 Input and 1 Output. The section on both sides require their own power supply set (\'filter+source\'): the regenerator with 1 output amplifies the data, but it does not allow the power supply through.Use: use only when 1 additional communication channel for the BI or apartment is required.Small size allows installation in electrical cabinets. Can be screwed/bolted directly onto the wall.

Specifications:

• Power supply: 18VDC
• Consumption:
• Standby: 180mA
• Active: 213 mA
• Operating temperature: -5ºC to 40ºC
• Maximum 5 cascading units.
• Maximum number of terminals: 100 with parallel wiring, 80 with other types of wiring.
• Dimensions: 86 x 89 x 26 mm (height-width-depth).
• Power: 18 VDC.

Contact us on sales@hunterswholesalers.co.uk for more specific product information and pricing installation and training.
