Fermax, 2443, MDS Video Switcher Module
- Brand:Fermax
- Product Code:2443
- Availability:Please Call or Email Us to Check Availability

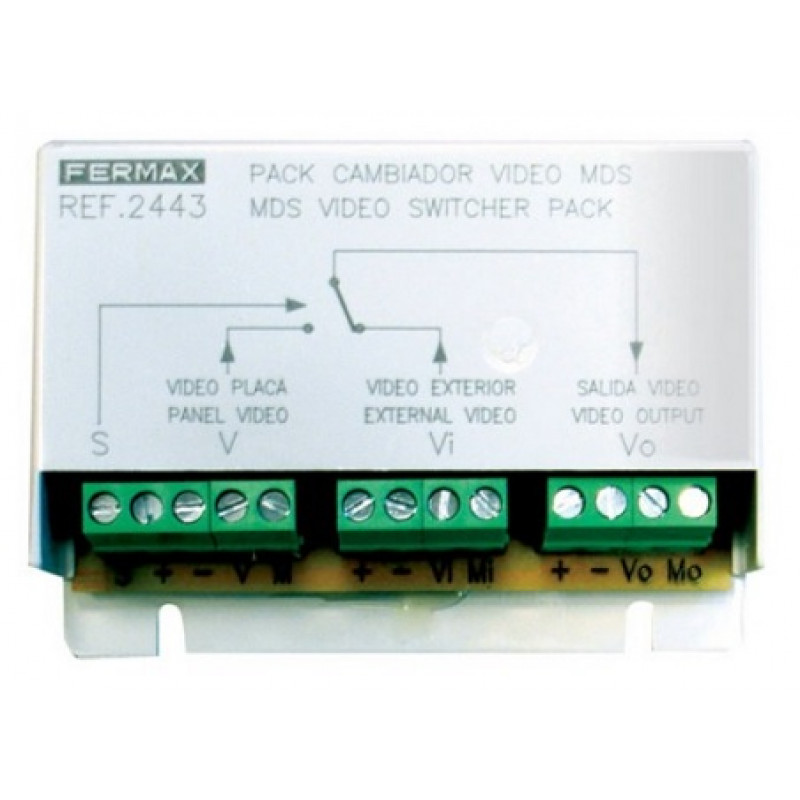

Fermax, 2443, MDS Video Switcher Module
Switcher module for MDS CITY/DIRECT installations with more than one video access. Its purpose is to connect the home monitor with the panel where the call is being made from. One switcher is required for each additional video door entry access.
Key Features:
- No Central Guard Unit required
- Pushbutton panels.
- Wiring:
- Audio: 6-wire bus.
- Video: audio bus + Coaxial (video) + 2 power supply wires.
- Maximum distance in the installation based on the cable section used (see technical manuals).
Specifications:
- Connections: VIDEO INPUT 1 (V). Video connection from panel 1. VIDEO INPUT 2 (Vi). Video connection from panel 2. VIDEO OUTPUT to the monitors in the installation.
- Dimensions: 62x85x20 mm (height-width-depth).
- Power supply:
- Audio: 12 Vdc.
- Video: 18 Vdc.
