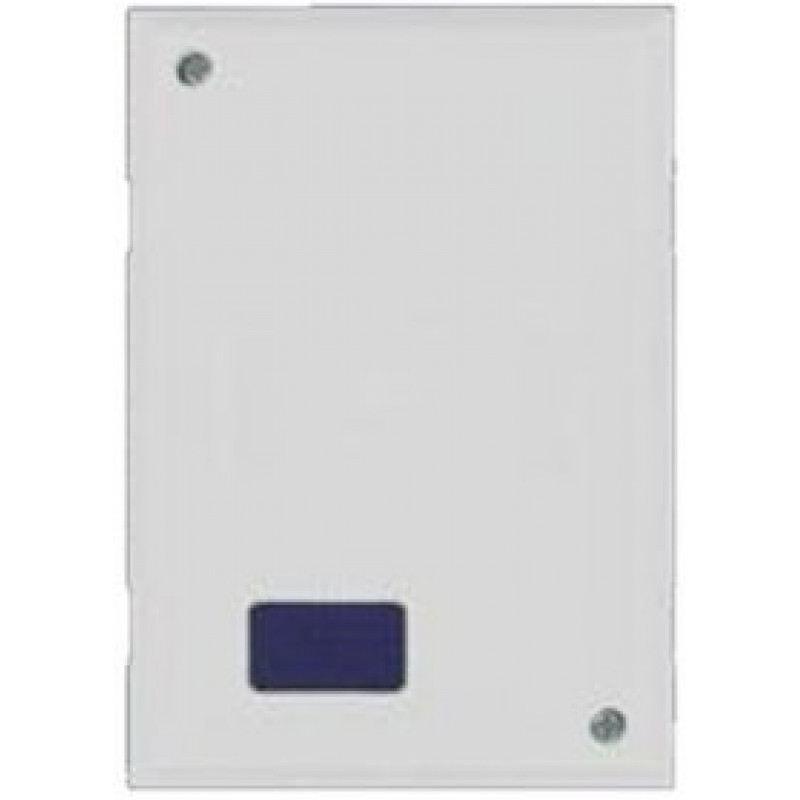

Scantronic EXP-R30 Wireless 30 Zone Expander for I-ON160EX

Scantronic EXP-R30 Wireless 30 Zone Expander for I-ON160EX

Description
The radio expanders for the i-on160EX provide channels for either 10 radio detectors (EXP-R10) or 30 radio detectors (EXP-R30). In addition each radio expander provides channels for:

•Two i-rk01 radio keypads.
•Two 760ES external radio sounders.
•Two Wireless Accessory Modules (WAMs).
Each radio expander also provides wired connections for a Loudspeaker.

Note: The total number of radio detectors that can be handled by an i-on160EX control unit depends partly on the density of radio transmitters within a given volume. If there are more than 30 transmitters within 10 meters radius of an expander then some mutual jamming may occur.

Specifications
Manufacturer: Cooper Security Ltd
Product code: EXP-R10, EXP-R30
Standards: EN50131
Security Grade: 2
Environmental: Class II.
Certification body: ANPI
Operating temperature: -10 to +55°C.
Humidity: 0 to 93% RH, non-condensing.
Dimensions: 230 x 144 x 44, mm HxWxD
Weight: 0.39 kg
Case material: ABS LG-AF342
Current Consumption: 40mA
