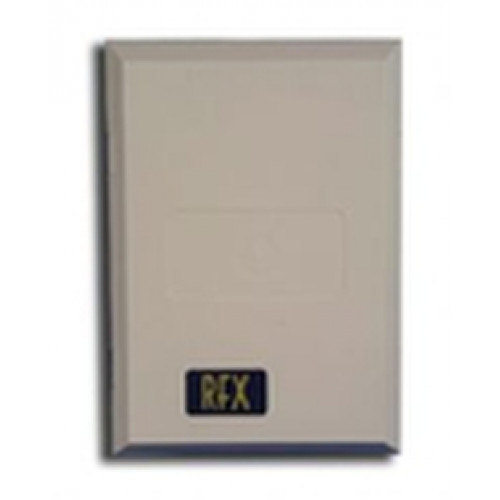

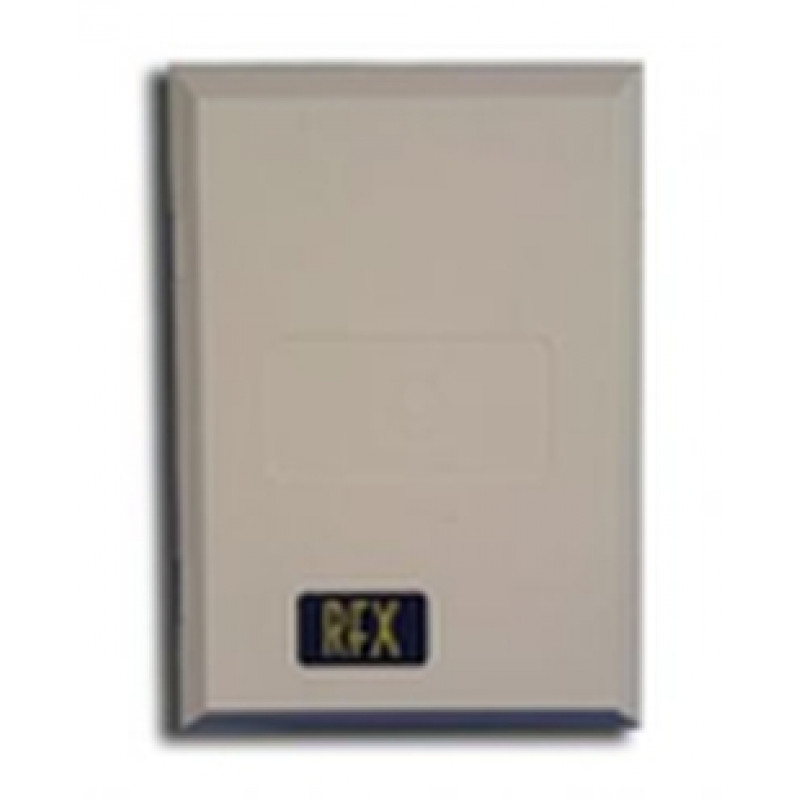

COOPER(Scantronic), RFX08, 8 Radio Zone Narrow Band Expander - 868MHz

8 Radio Zone Narrow Band Expander - 868MHz [RFX08]

Overview:

Scantronic RFX Radio Expanders are available in two sizes, RFX08 which adds 8 radio zones and RFX16 which adds 16 zones to the system capacity.

To ensure maximum security, the RFX checks the status of all its associated transmitters every 4 minutes to ensure optimum performance at all times. Scantronic’s unique dual diversity antenna system guarantees excellent radio reception with minimal dead-spots, even in the most hostile environments

Specification

• Zones: 8 (RFX08) alarm + tamper per zone
• Set Up Display: 7-segment LED. Visible Cwith case open
• Compliance: Product is tested to 1995/5/EC R&TTE Directive
• Radio Section: Operating frequency 868.6625MHz at 20kHz bandwith. I-ETS 300 220. CE tested to I-ETS 300 339 (draft standard).
• Receiver: Integral AE2 dual diversity antennaeand receiver
• Transmitter Learn: Auto recognition of type and auto configuration via LED (16,000,000 permutations)
• Supervision: Interval 4 minutes
• Rolling Code Capability:
  • Super-encrypted, rolling code for use with remote keyfob operation (complies with PD6662:2004 and DD243:2005)
  • Suitable rolling code keyfobs Scantronic 722rEUR-00 & 727rEUR-00
• Field Strength Indication: Via internal 7-segment display
• Input Power: Quiescent current 55mA 4-way connection to main keypad bus of any version of Scantronic 9751, 9752, 9851 & 9853
• Connectors: 4-way connection to main keypad bus
• Dimensions: (h x w x d) 185 x 130 x 30mm
• Weight: 380g

For more details, please refer with our attached datasheet.
