COOPER(Scantronic), EXP-R10, 10 Zone Wireless Radio Expander for i-onEX Range
- Brand:Eaton
- Product Code:EXP-R10
- Availability:Please Call or Email to Checkout

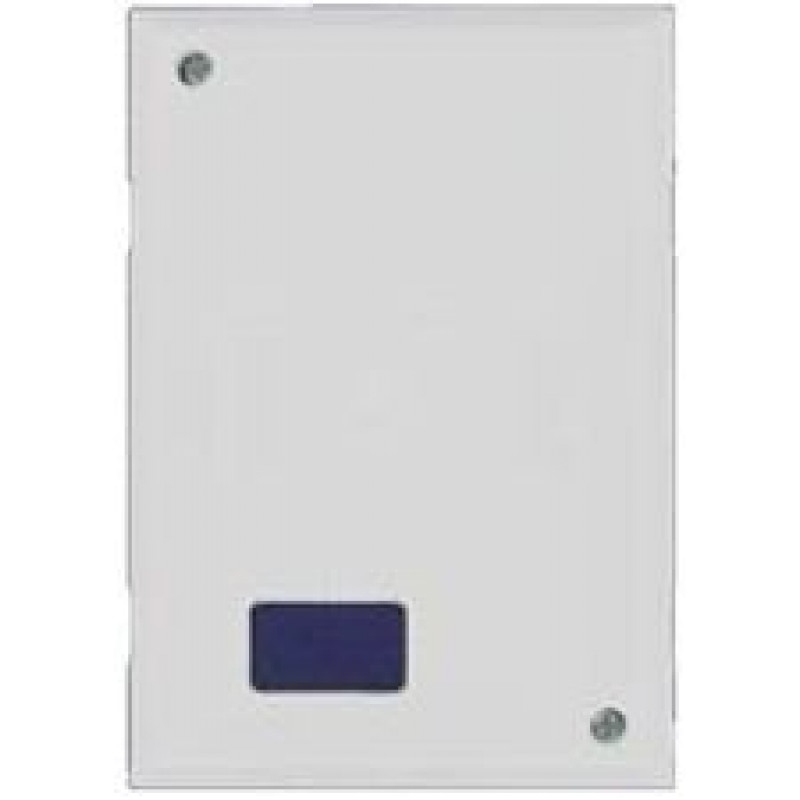

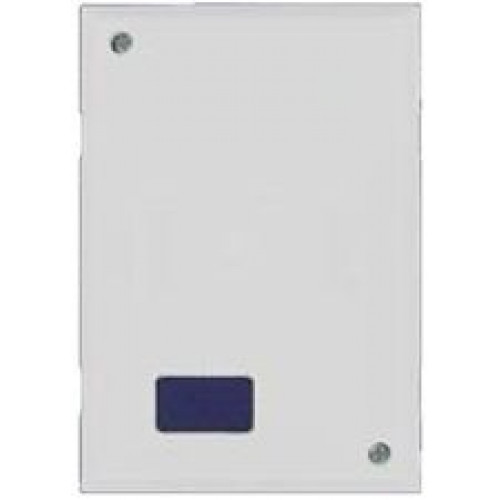

EXP-R10, 10 Zone Wireless Radio Expander for i-onEX Range
Overview:
The radio expanders for the i-onEX range of control units provide channels for either 10 radio detectors (EXP-R10). In addition each radio expander provides channels for:
- Two i-rk01 radio keypads.
- Two 760ES external radio sounders.
- Two Wireless Accessory Modules (WAMs).
Each radio expander also provides wired connections for a Loudspeaker.
Note: The total number of radio detectors that can be handled by an i-onEX control unit depends partly on the density of radio transmitters within a given volume. If there are more than 30 transmitters within 10 meters radius of an expander then some mutual jamming may occur.
Specification:
- Product code: EXP-R10
- Standards: EN50131
- Security Grade: 2
- Environmental: Class II.
- Certification body: ANPI
- Operating temperature: -10 to +55°C.
- Humidity: 0 to 93% RH, non-condensing.
- Dimensions: 230 x 144 x 44, mm HxWxD
- Weight: 0.39 kg
- Case material: ABS LG-AF342
- Current Consumption: 40mA
