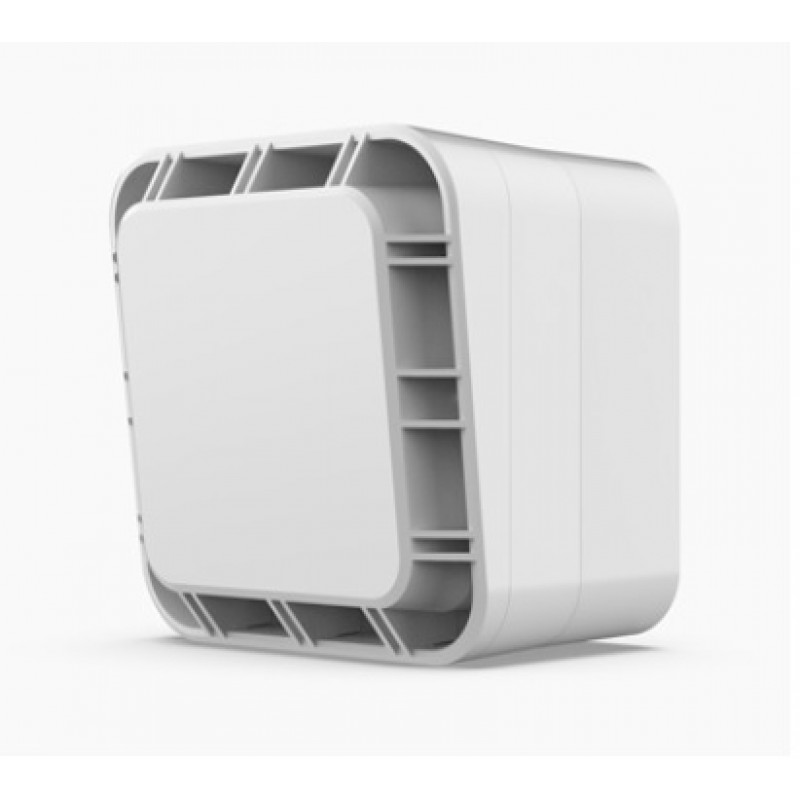

12-101, Xtratone Conventional Indoor Sounder, White

12-101, Xtratone Conventional Indoor Sounder, White

The Xtratone is an addressable loop powered wall sounder controlled by the fire alarm panel. It is designed to be low current and provides a range of tones with a maximum output of up to 102dB(A) (±2dB). Details of the tones range can be found in the table below.

A combined Sounder/LED Indicator version is also available. Each device is supplied with a back box having four 20mm knock-outs for surface mounting purposes. The device is compact enough to be mounted directly on to a single European back box for semi-flush mounting. The Xtratone has an ingress protection rating of IP21C (with back box) for internal use only.

Key Features:

• High Sound Output
• Low Current Consumption
• 10 Tones (User Selectable)
• Two Stage Alarm (ProFyre A4 Only)
• Automatic Synchronisation.

Specifications:

• Operating Voltage : 17 to 28Vdc
• Quiescent Current : 0.65mA
• Alarm Current : 4.5mA
• Sound Output : See Alarm Tones Table
• Operating Conditions : Tested to: -10°C to +55°C (14°F to 131°F),Maximum Continuous Temperature: 0°C (32°F),Humidity: 0% to 95% RH, non-condensing
• IP Rating : IP21C
• Design Environment : Indoor Use Only
• Mounting : Semi Flush or Surface
• Colour : White.
