Pyronix, EUROENF/KIT1, Euro Hybrid Kit 1

Pyronix, EUROENF/KIT1, Euro Hybrid Kit 1

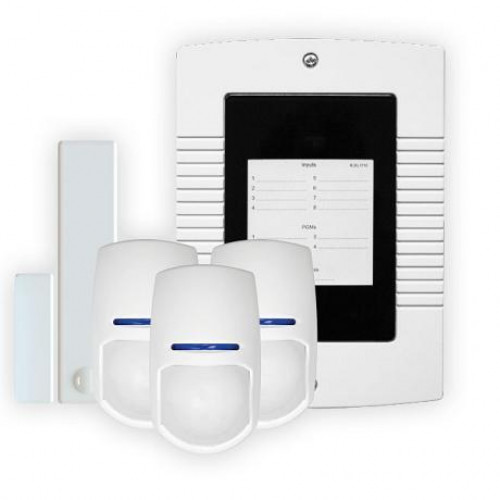

Kit Includes:

• 1x EURO-ZEM32-WE
• 3x KX12DQ-WE
• 1x MC1MINI-WE

The EUROENF/KIT1 includes a EURO ZEM32-WE, allowing you to connect the Enforcer wireless range to your EURO wired control panels, with three wireless digital quad detectors and a mini magnetic contact.

The wireless input expander EURO-ZEM32-WE included in this security alarm expansion kit provides 32 wireless zones to your EURO panels. 1 can be added to the EURO-46 security control panel, however if you require further flexibility you can add up to 3 input expanders to the EURO-162 providing you with up to 96 wireless zones.

Key Features:

• Connect the EURO 46 or 162 with the Enforcer two- way wireless products
• Protects your door with the MC1MINI-WE
• No wire, no fuss just great performance
• One push to learn

(EURO-ZEM32-WE) Wireless Expander

Connect your EURO Hybrid panel to the Enforcer two-way wireless security devices, giving you a truly hybrid system.

The award-winning Enforcer two-way wireless technology gives you the flexibility of a wireless device with the reliability and stability of wired security detectors and sensors.

Instant two-way Device Control (ITDC)
The ITDC technology enables instant wake-up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.

Two-way Wireless Technology
Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one-way and some two-way wireless products currently available on the market.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Pyronix High Security Wireless Protocol Encryption
The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 bit Pyronix advanced encryption.

Key Features:

• Instant two-way device control (ITDC)
• Pyronix High Security Wireless Encryption Protocol
• 868MHz Transceiver FM technology
• It supports 32 wireless inputs, 32 wireless keyfobs and 2 wireless bells
• Complies with EN50131-1

Technical Specifications:

Input and output expanders technical characteristics

• Plastic housing : Yes
• Tamper protection : Front and rear

Enforcer two-way wireless technology

• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• Tranmission method : Fully encrypted rolling code
• Transmission range : 1.6 km in open space

Inputs & outputs

• Two-way wireless inputs : 32
• Two-way wireless keyfobs : 32
• Two-way wireless sirens : 2

Environmental and operating features

• Storage temperature : -40°C to +80°C
• Certified operating temperature : -10°C to +50°C
• Nominal operating temperature : -10 to +50°C
• Physical dimensions (H x W x D) : 173 x 125 x 32mm

Electrical & battery

• Operating voltage : 9V – 15V
• Quiescent current consumption : 60mA

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-1:2006+A1:2009, EN50131-3:2009, EN50131-6:2008, EN50131-5-3:2005+A1:2008
• Certification type : IMQ
• Certificate number : CA12.01439
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2

(KX12DQ-WE) Two Way Wireless 12m Digital PIR Dual Detector

The KX12DQ-WE combines the excellent performance of the KX digital quad technology with the benefits of a wireless product. With increased accuracy and sensitivity the KX DQ sensor is the ideal choice for many homes and businesses alike.

Aspherical Lens
In the KX Series, the distance between the pyro-electric sensor and the lens is identical for each detection zone. This eliminates distortion and provides excellent focused zones.

In traditional detectors the lens is made in a flat form and bent into a cylinder. Therefore the distance between the pyro-electric sensor and the lens varies for each detection zone. This causes distortion and unfocused zones.

Compatibility
All Enforcer 868MHz High Security Peripherals are compatible with the Enforcer control panel, and Euro panels fitted with the EURO-ZEM32-WE wireless zone expander.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

12m Wireless Volumetric detector
12m Volumetric detection coverage. Ideal for protection of rooms, offices etc.

Digital Temperature Compensation
When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC)

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:

1). The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Key Features:

• 12m Volumetric detection
• Dual element pyro-electric sensor
• Blue wave technology
• Digital temperature compensation
• Sealed optics
• ABS plastics
• Signal Strength Indicator on the Device
• Pyronix High Security Wireless Protocol Encryption
• 868MHz Transceiver FM technology
• Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

• Two-way wireless technology : Yes
• Blue Wave technology : Yes
• Automatic sensitivity ; Yes
• Digital temperature compensation : Yes
• Tamper protection : Front and rear
• Signal Strength Indicators (SSI) : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 1.6km in open space

Optical, lens and detection characteristics

• Maximum range : 12m
• Volumetric coverage : Yes
• Coverage angle : 85 degree
• Detection zones : 60
• Detection planes : 7

Mounting

• Optimum coverage height : 1.8 - 2.4m
• Certified mounting height : 2.4m

Environmental and operating features

• Storage temperature : -20°C to 50°C
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 117 x 69 x 50mm

Electrical & battery

• Battery type : 1 x CR123A
• Battery life : up to 2 years
• Battery voltage : 3.0V
• Low battery threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-2:2008, EN50131-5-3:2005+A1:2008
• Certification type : IMQ
• Certificate number : CA12.01325
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2

(MC1MINI-WE) Two Way Wireless Magnetic Contact - White

With One-Push-To-Learn and no wires to run around the property,the MC1MINI-WE wireless magnetic contact is quick and simple to install.

The high security Enforcer two-way wireless protocol, using 128 bit Pyronix advanced encryption and instant two way device control (ITDC), will give you the peace of mind that your system will remain as secure and reliable as a wired system whilst offering you the flexibility in installation of wireless security products.

Pyronix High Security Wireless Device Encryption
The Two Way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level.

One-Push-To-Learn
Assigning wireless devices to the system is made simple and quick by the One-Push-To-Learn feature.
1. Choose an input to learn the device to
2. Remove the plastic insulator between the battery and positive contact and press LEARN button
3. Input learnt
Quick, Simple and Efficient!

Instant two-way Device Control (ITDC)
The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Two-way Wireless Technology
Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

Key Features:

• 1 Reed Switch (side)
• One Push To Learn Button
• Pyronix High Security Wireless Protocol Encryption
• 868MHz Transceiver FM technology
• Complies with EN50131-1

Technical Specifications:

Security and safety sensors technical characteristics

• Magnetic contact : Yes
• Tamper protection : Front and rear
• LED sensor test : Signal, Battery, Alarm, Tamper
• Magnet included : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 1.6m in open space

Environmental and operating features

• Storage temperature : -20°C to 50°C.
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 27 x 104 x 25mm, Magnet: 14 x 49 x 16mm

Electrical & battery

• Battery type : 1 x CR123A 3V lithium battery
• Battery life : 2 years
• Threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-6:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
• Certification type : IMQ
• Certificate number : CA12.01482
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
