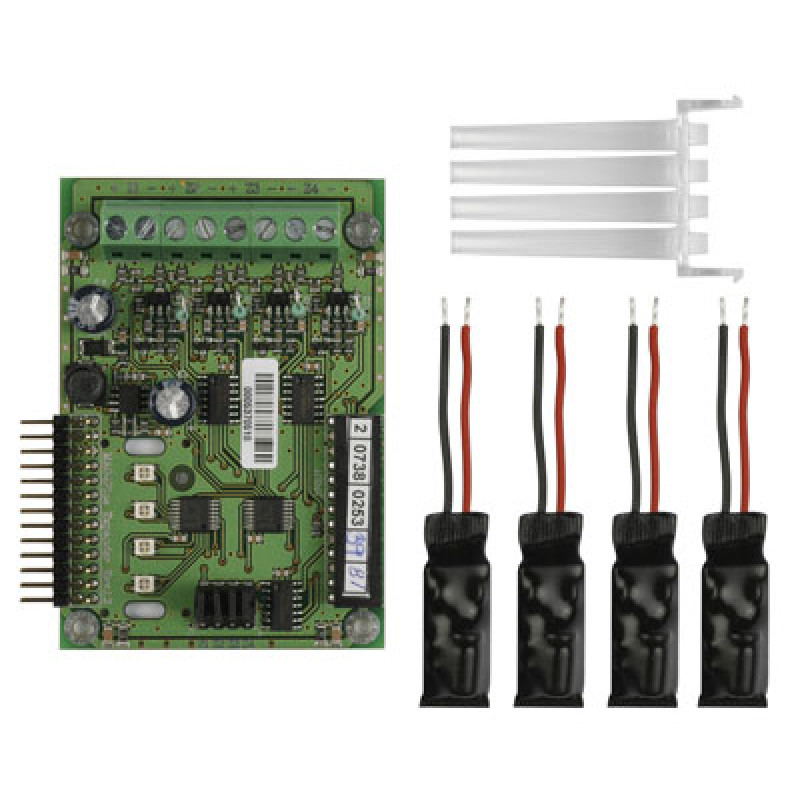

ESP (MAGZC-816) 4 Zone Expander Card for MAG816
- Brand:ESP
- Product Code:MAGZC-816
- Availability:Please Call or Email Us to Check Availability
MAGZC-816, ESP, 4 ZONE EXPANDER CARD, for use with MAG816
High quality Fireline 4 Zone Expander Card for use with MAG816 Fire Panel from ESP
Technical Specification:
Power Supply from CIE: +24VDC
Zone Circuits: 4
Detectors per Zone/ max. number of detectors: 32/ 128
Consumption (main and battery power supply for the fire akarm panel): 2.1VA
Consumption in alarm mode: 130mA
Consumption in alarm mode: 330mA
instant action mode for zones: YES
LED indication for zone circuits: YES
Operating temperature: 0°C +40°C
Relative humidity resistance: (93±3)% @40°C
Dimensions: 57x81mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
