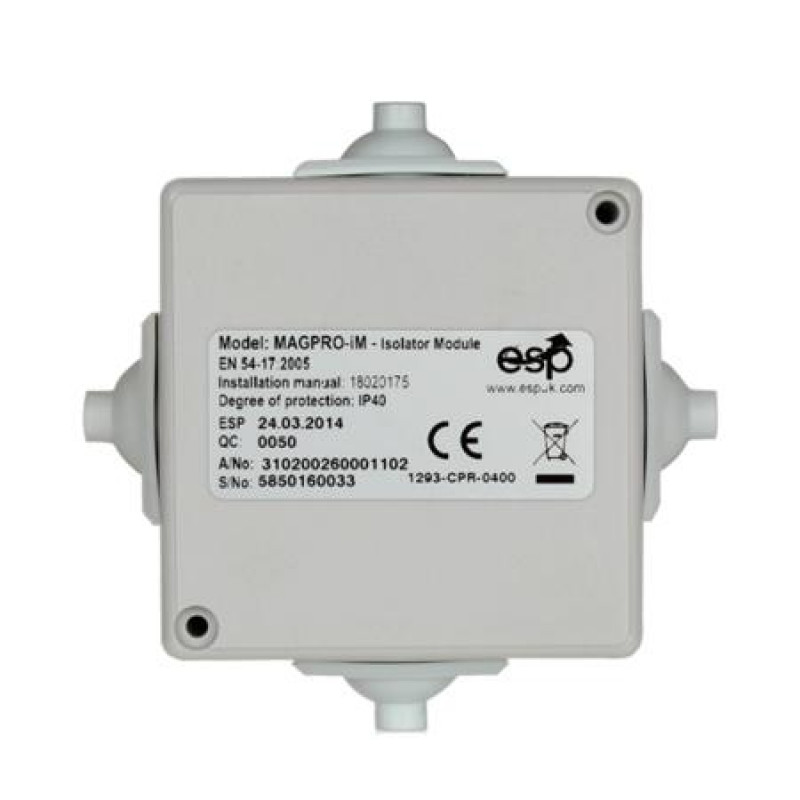

ESP (MAGPRO-iM) Addressable Loop Isolator Module
- Brand:ESP
- Product Code:MAGPRO-iM
- Availability:Please Call or Email Us to Check Availability
ESP (MAGPRO-iM) Addressable Loop Isolator Module
Key Features:
- Protection against short circuit
- Auto reset after short circuit
- 4 x cable entry points
- A maximum of 30 devices between two isolators
- Certified to EN54–17
Technical Specification:
Operating Voltage Range: 15-30VDC (Nom 27VDC)
Max Isolator Resistance: 0.18? @27VDC / 0.25? @15VDC
Norm, Current Consumption: 200uA
Wire Gauge for terminals: 0.4mm² - 2.0mm²
Operating Temperature: -10°C to +60°C
Degree of protection: IP40
Max. number of devices between two modules: 30
Relative humidity resistance: (93±3)% @40°C
Dimensions: 71x71x40mm
Material(plastic): PVC, Self extingushing
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
