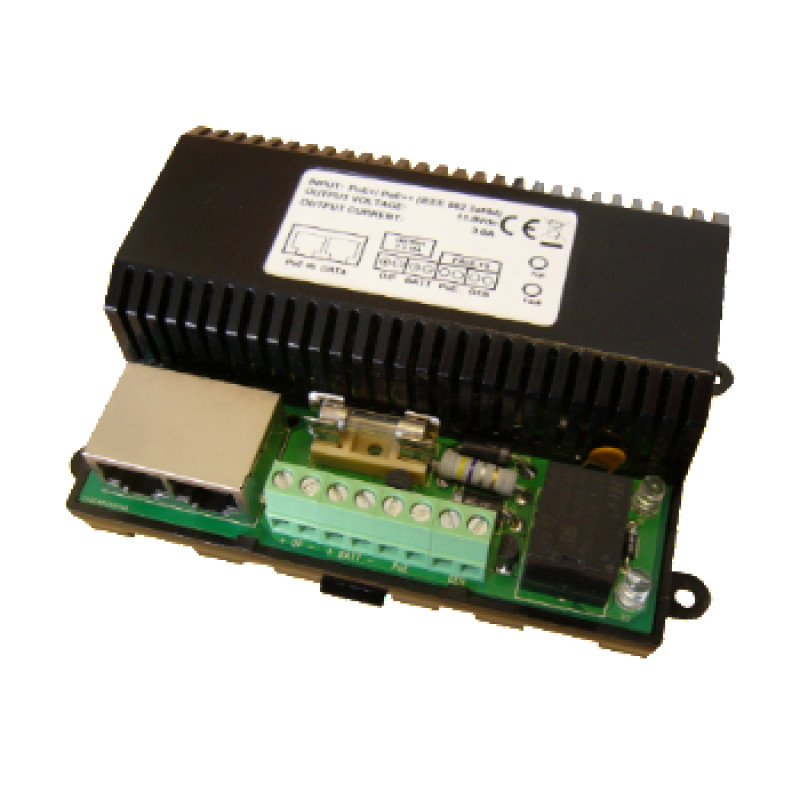

Elmdene, POE-ULTRAPOD-MOD, PoE UltraPod - DIN Mountable Module

Elmdene, POE-ULTRAPOD-MOD, PoE UltraPod - DIN Mountable Module

The Elmdene PoE UltraPod™ is a unique PoE powered device that can charge up to a 12V 17Ah battery whilst continuing to provide a 13.8V dc output of up to 3A.

If the PoE power being provided to the input fails, the battery seamlessly takes over continuing to provide the 13.8V dc voltage to the device, allowing data to continue to flow.

Available as a DIN rail mountable module or a boxed unit. It can be used in a variety of PoE applications such as CCTV or Access control. Installer friendly RJ45 connections are provided to off er a simple plug and play solution without the requirement of terminating Cat5 connections.

Key Features:

• Provides up to 3A to the device with an additional 0.5A available for battery charging (PoE++ required)
• Offers battery back-up on loss of input PoE power
• DIN rail mountable module
• Boxed unit has space for 17Ah battery
• Boxed unit has fi xing points for commonly used access control boards
• Data pass through for IP connections (10/100Mbps)
• Modular design
• Battery Deep Discharge Protection
• Bespoke / OEM models considered
• 3 year warranty

For more details, please refer with our attached datasheet.
