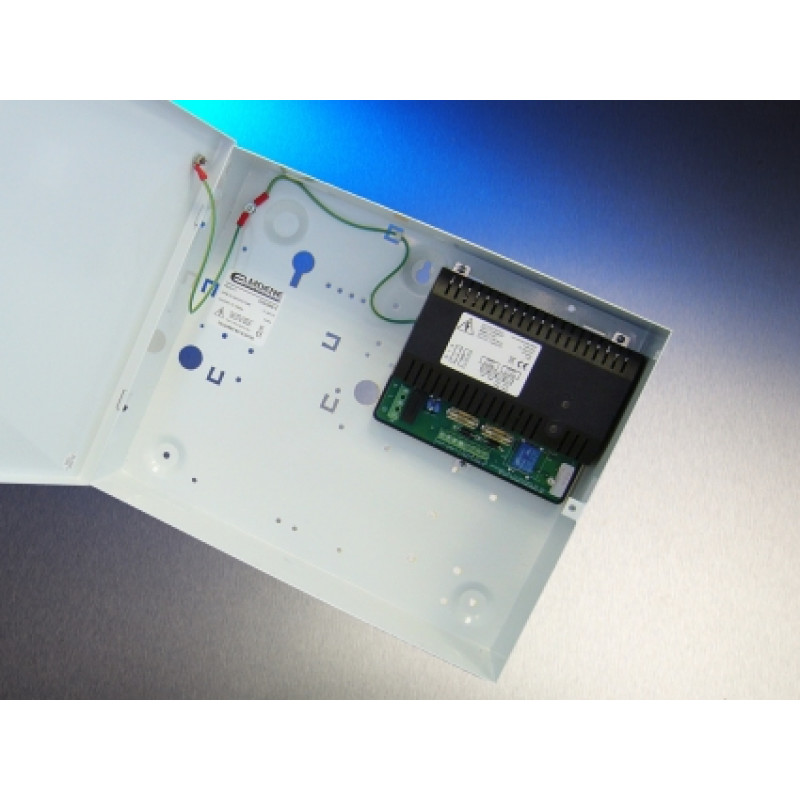

Elmdene, G2405N-H, N Range 24V DC 5.0 Amp Switch Mode PSU - (Hinge Lid)

Elmdene, G2405N-H, N Range 24V DC 5.0 Amp Switch Mode PSU - (Hinge Lid)

24V d.c. Switch Mode PSU(27.6V) 5Amp to load + 0.5A battery charging. Multi LED status indication. Fit up to 2x38Ah batteries. 'H' Box: 420h x 420w x 180d - Hinge lid

The G Range N Series Switch Mode power supplies have been specifically designed for General Purpose applications including Fire and Access Control that require a cost effective solution. Boxed and Unboxed models.

Features:

• Efficient Switch Mode Operation
• Closely Regulated 27.6V Output
• Full Rated Current to Load + 0.5A Battery Charging
• Universal Mains Voltage Input 90V – 264V ac
• Modular Construction for ease of Servicing
• LED Indication
  • Green - Mains Status
  • Yellow - Output or Battery Fuse Failure, Output Short Circuit or Low Output Voltage
• Electronic Overload/Short Circuit Protection Under Mains Operation - 3 & 5A models
• Mains Transient Protection
• FOM 4 or 8 can be fitted to provide 4 or 8 individually fused outputs

Specifications:

• Output (mains on): 27.6V dc nominal
• Load Output: 5 Amp
• Max Battery Capacity 'H' Box 2x38Ah
• Mains Supply : 90-264V @50/60Hz
• Environment: -10C to 40C @ 95%RH
• Enclosure: 'H'  - 420H x 420W x 180D hinge lid
