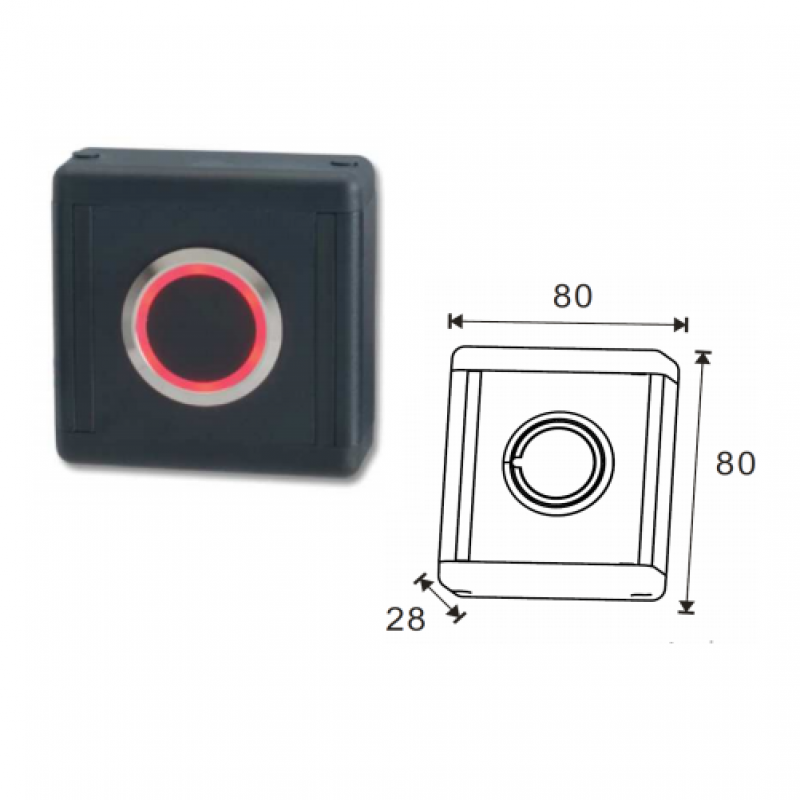

AMS-EBIR5-RG, Discreet surface mount design with Red/ Green LED

AMS-EBIR5-RG, Infra Red Exit Device, 12V, Black Plate, Com/NO/NC Contacts, Illuminated status bezel red/green, Adjustable range and latch time

Reduce contact and transmission of infections in high traffic areas or descrete locations such as warehouses, offi ces and shared occupancy areas or use as a close proximity detector

Features

• Descrete surface mount design
• Touch-free activation
• Red LED turns Green when activated (interchangable)
• Made from durable aluminium alloy and PC
• Adjustable latch time from 0.5 to 30 seconds
• Adjustable trigger distance from 4 - 15cm
• Designed to prevent any interference with other infra-red devices
• Long life: ▪ infra-red sensor: 100,000 hours ▪ relay: 1,000,000 operations
• IR switch component is IP65 rated
• 1 year warranty

Technical Information:

• Supply voltage: 12V dc – 24V dc
• Output loading: 1A at 30V dc (max)
• Maximum current: Approx 45mA at 12V dc
• Contacts available: NO and NC
• Operating temperature: -10°C to +70°C
