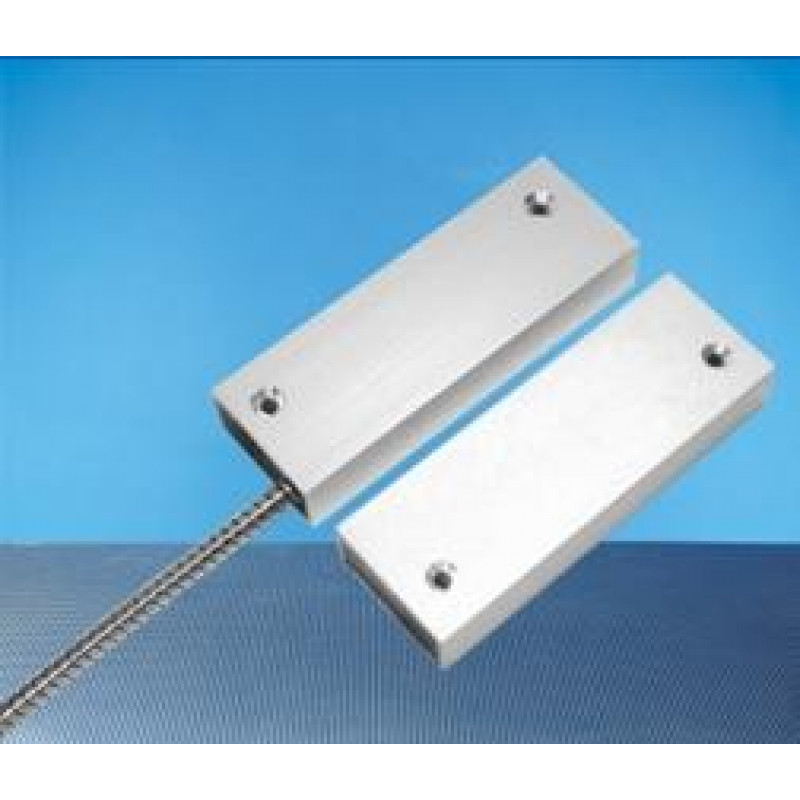

Elmdene, VS303, 4 Terminal Active Tamper High Security Magnetic Surface Contact, Grade 3 - Silver

Elmdene, VS303, 4 Terminal Active Tamper High Security Magnetic Surface Contact, Grade 3 - Silver

Elmdene has an extensive range of quality High Security Magnetic Contacts providing a Surface mounting.

The FMBR meet the requirements of:

• PD6662: 2010
• EN50131-1: 2006
• EN50131-2-6: 2008

Specification:

• Cabled / Terminals: Cabled
• Ferrous Material: Yes
• Operation Mode: 4 wire - DP 6 wire - FSL & DP
• Single / Multiple Doors: Single or Multiple
• Special Features: Multiple Reeds Active Tamper
• Spacers Available: N/A
• Fixing: Screws
• Material: Aluminium
• Colours: Silver
• Operating Gap- Minimum Close (mm): 5
• Number of Reeds: 5
• Biased Reeds: 3
• Tamper: Active
• Resistors Fitted: 6 wire version
• Number of Wires or Terminals: 4W
• Stainless Steel Cable Protection: 50cm
• Encapsulation: Potted
• Dimensions(L X W x D): 109 X 38 X 19mm
• Magnet: As Contact
• Cable Length (cm): 100
• EN50131-2-6 Grade: 3
• Environmental Class: III
• Protection: IP67

* Contact sales for specific model
