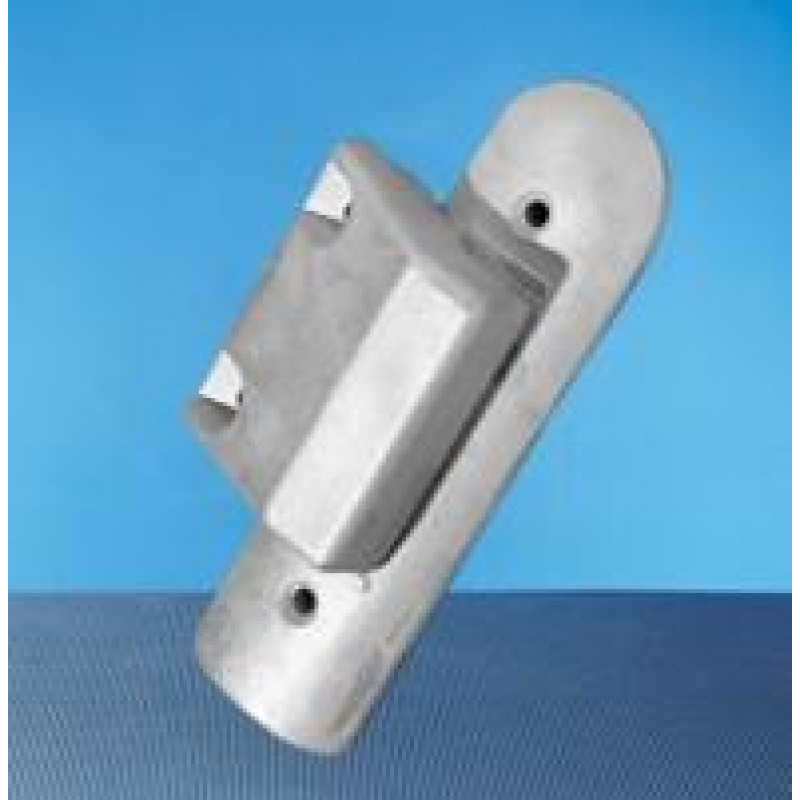

Elmdene, EN3-RSA-GN, 6 Wire 18mm Surface Contact with 1k/1k Resistor (Green), Grade 3 - Silver

Elmdene, EN3-RSA-GN, 6 Wire 18mm Surface Contact with 1k/1k Resistor (Green), Grade 3 - Silver

Elmdene has an extensive range of high quality Magnetic Contacts providing a Surface mounting. Grade 3 Contacts are 'Cabled' with 1m flying lead.

Specification:

• Cabled / Terminals: Cabled
• Ferrous Material: Yes
• Operation Mode: FSL or DP
• Single / Multiple Doors: Single or Multiple
• Special Features: Magnetic Immunity & Detection
• Spacers Available: N/A
• Fixing: Screws
• Material: Aluminium
• Colour: Silver
• Magnetic Detection / Immunity: Detection/Immunity
• Operating Gap- Minimum Close (mm): 18
• Resistors Fitted: Yes
• Number of Wires or Terminals: 6W
• Stainless Steel Cable Protection: 100cm
• Encapsulation: Potted
• Dimensions (L X W X D): 150 X 40 X 14
• Magnet: 73 X 60 X 40
• Cable Length (cm): 100
• TS50131-2-6 Grade: 3
• Environmental Class: III
• Protection: IP67

 *Contact sales for specific model
