Elmdene, EN3-LSC-GN, 6 Wire 20mm Surface Contact with 1k/1k Resistor (Green), Grade 3 - White
- Brand:Elmdene
- Product Code:EN3-LSC-GN
- Availability:Please Call or Email to Checkout

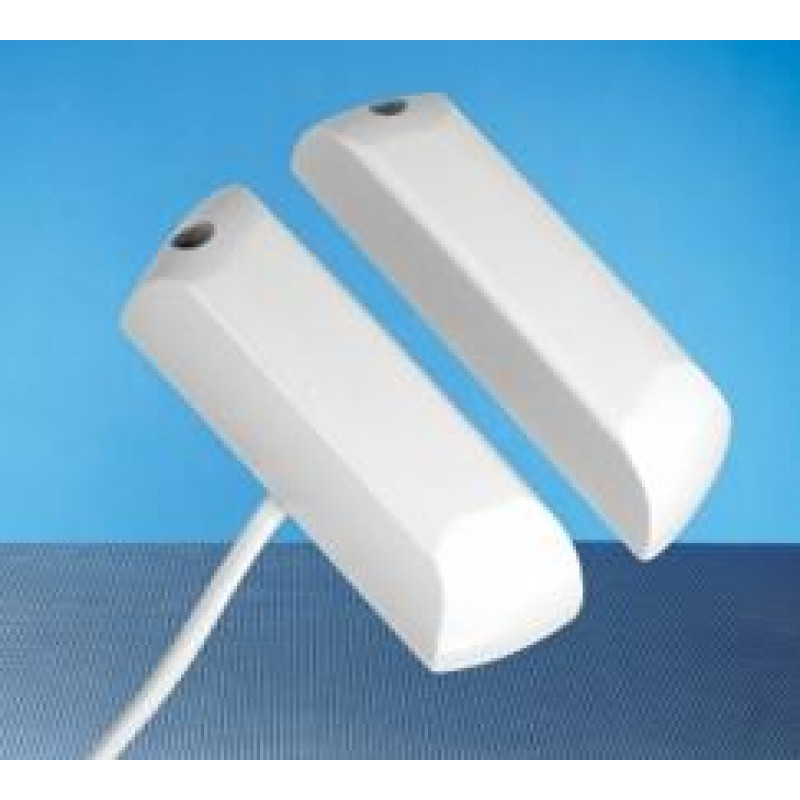

Elmdene, EN3-LSC-GN, 6 Wire 20mm Surface Contact with 1k/1k Resistor (Green), Grade 3 - White
Elmdene has an extensive range of high quality Magnetic Contacts providing a Surface mounting. Grade 3 Contacts are 'Cabled' with 1m flying lead.
Specification:
- Cabled / Terminals: Cabled
- Ferrous Material: with Spacer
- Operation Mode: FSL or DP
- Single / Multiple Doors: Single or Multiple
- Special Features: Magnetic Immunity
- Spacers Available: LSC-SPC (2.5mm)
- Fixing: Screws
- Material: ABS
- Colour: White
- Magnetic Detection / Immunity: Immunity
- Operating Gap- Minimum Close (mm): 20
- Resistors Fitted: Yes
- Number of Wires or Terminals: 6W
- Stainless Steel Cable Protection: No
- Encapsulation: Potted
- Dimensions (L X W X D): 93 X 25 X 25
- Magnet: As Contact
- Cable Length (cm): 100
- TS50131-2-6 Grade: 3
- Environmental Class: III
- Protection: IP67
*Contact sales for specific model
