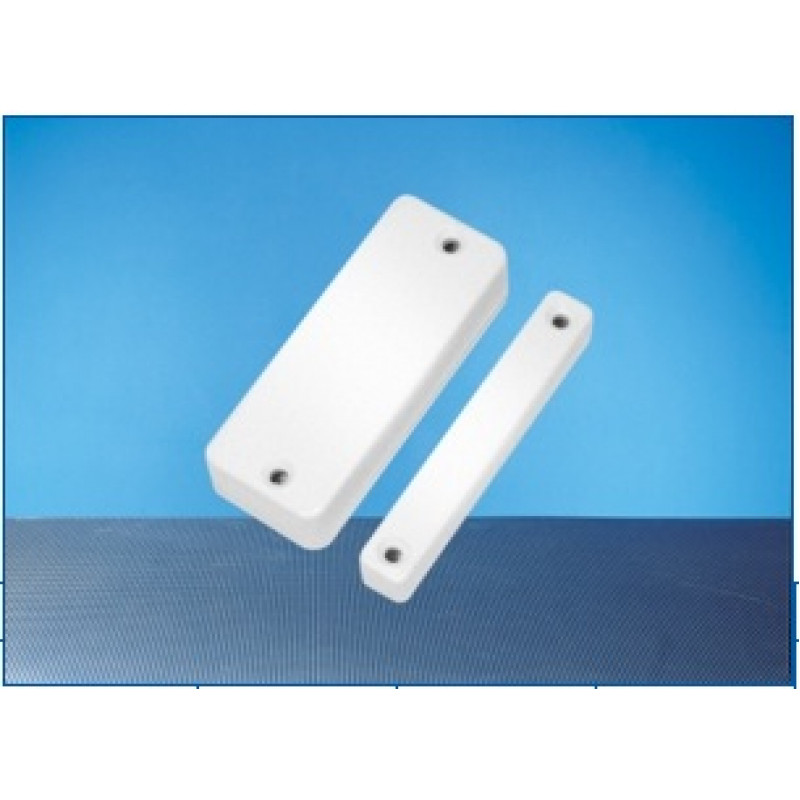

Elmdene, SHD2, Large Surface Mount Plastic, 4 Terminal, 12mm, Grade 2 - White
- Brand:Elmdene
- Product Code:SHD2
- Availability:Please Call or Email Us to Check Availability
Elmdene, Large Surface Mount Plastic, 4 Terminal, 12mm, Grade 2 - White [SHD2]
Elmdene has an extensive range of high quality Surface Magnetic Contacts providing a choice of both 'Cabled' or 'Terminal' Contacts within these ranges.
Specification:
- Material: ABS
- Colour: WHITE
- Environmental Class: II
- Cabled / Terminals: Terminals
- Ferrous Materials: With Spacer
- Operation Mode: FSL & DP
- Single / Multiple Doors: Single or Multiple
- Special Features: N/A
- Spacers Available: SHD-SPC (3.0mm)
- Fixing: Screws
- Operating Gap- Minimum Close (mm): 10
- Resistors Fitted: FSL version
- Number of Wires or Terminals: 6T
- Stainless Steel Cable Protection: N/A
- Encapsulation: N/A
- Length (mm): 61
- Width (mm): 23
- Depth (mm): 13.5
- Magnet: 61 x 14 x 9
- Cable Length(cm): N/A
