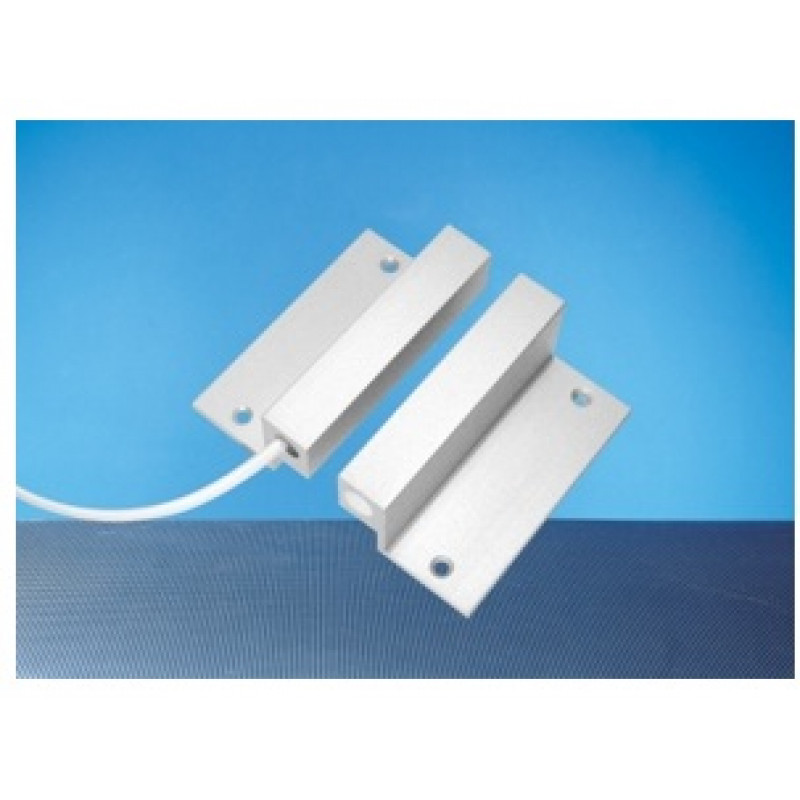

Elmdene, 4HD-SO, 4Wire Heavy Duty Surface Metal Contact with Angle Bracket, Grade 2
- Brand:Elmdene
- Product Code:4HD-SO
- Availability:Please Call or Email to Checkout
Elmdene, 4Wire Heavy Duty Surface Metal Contact with Angle Bracket, Grade 2 [4HD-SO]
Elmdene has an extensive range of high quality Surface Metal Magnetic Contacts.
Specification:
- Material: Aluminium
- Colour: SILVER
- Environmental Class: III
- Cabled / Terminals: Cabled
- Ferrous Materials: Yes
- Operation Mode: 4 wire - DP 6 wire - FSL & DP
- Single / Multiple Doors: Single or Multiple
- Special Features: Stand Off Bracket
- Spacers Available: N/A
- Fixing: Screws
- Operating Gap- Minimum Close (mm): 25
- Resistors Fitted: 6 wire version
- Number of Wires or Terminals: 4W or 6W
- Stainless Steel Cable Protection: option
- Encapsulation: Plotted
- Length (mm): 80
- Width (mm): 32
- Depth (mm): 45
- Magnet: As Contact
- Cable Length(cm): 100
Optional Order Related to this Item Available on Request:
| PART NO | DESCRIPTON |
| 4HD-300/NFA2P | Surface Contact - Grade 2 - Large - Anodised Aluminium. Potted with 3m cable tail. 25mm operating gap. 80L x 19w x 12.5d. NFA2P approved |
| 4HD-300-GN-IN | Surface Magnetic Contact, Grade 2, IP67, Heavy Duty Aluminium, potted 4 wire (3m), 25mm operating gap, integral 1k/1k resistors, screw fix. Size: Contact & Magnet - 80mm x 19mm x 12.5mm. BWO, NCP, INCERT approval |
| 4HD-60 | Surface Contact - Grade 2 - Large - Anodised Aluminium. Potted with 60cm cable tail. 25mm operating gap. 80L x 19w x 12.5d. |
| 4HD-60-IN | Surface Magnetic Contact, Grade 2, IP67, Heavy Duty Aluminium, potted 4 wire (60cm), 25mm operating gap, screw fix. Size: Contact & Magnet - 80mm x 19mm x 12.5mm. BWO, NCP, INCERT approval |
| 4HD-60-SO-IN | Surface Magnetic Contact with Angle Stand Off, Grade 2, IP67, Heavy Duty Aluminium, potted 4 wire (60cm), 25mm operating gap, screw fix. Size: Contact & Magnet - 80mm x 32mm x 45mm. BWO, NCP, INCERT approval |
| 4HDBR-50-SS-SO | Surface High Security Contact - Grade 2 - Large - Anodised Aluminium. Potted with cable tail. 0.5m SS Conduit, Biased reed with passive tamper, 17mm operating gap. Mounted on 'L' brackets. Size 80L x 32w x 45d |
| 6HD-60-GN-IN | Surface Contact - Grade 2 - Large - Anodised Aluminium. Potted with cable tail. 60cm SS conduit, Integral 1k/1k resistors, 25mm operating gap. 80L x 19w x 12.5d. IELCO114 |
| 6HDBR-SO-GN | Surface High Security Contact - Grade 2 - Large - Anodised Aluminium. Potted with cable tail. 1m SS Conduit, Biased reed with passive tamper, 17mm operating gap. Mounted on 'L' brackets. Size 80L x 32w x 45d |
| 6HD-GN | Surface Contact - Grade 2 - Large Aluminium. 1m Potted cable tail. Integral 1k/1k resistors for use in FSL or DP systems, single or multiple doors, Screw Fixing. 25mm operating gap. 80L x 19w x 12.5d |
| 6HD-SO-100-SS-RD | Surface Magnetic Contact with Angle Stand Off, Grade 2, IP67, Heavy Duty Aluminium, potted 6 wire, 1m SS conduit, Integral 4K7/2k2 resistors, 25mm operating gap, screw fix. Size: Contact & Magnet - 80mm x 32mm x 45mm. |
| 6HD-SO-GN | Surface Contact - Grade 2 - Large - Anodised Aluminium. Potted with 1m cable tail. Integral 1k/1k resistors, 25mm operating gap. Mounted on 'L' brackets. Size 80L x 32w x 45d |
| VHDA-GN | Surface Contact - Grade 2 - Very Large - Aluminium & Plastic. 42mm operating gap. Terminal connection. Integral resistors (according to colour code -yy). For use in FSL or DP systems, single or multiple doors. 170L x 25w x 25d |
