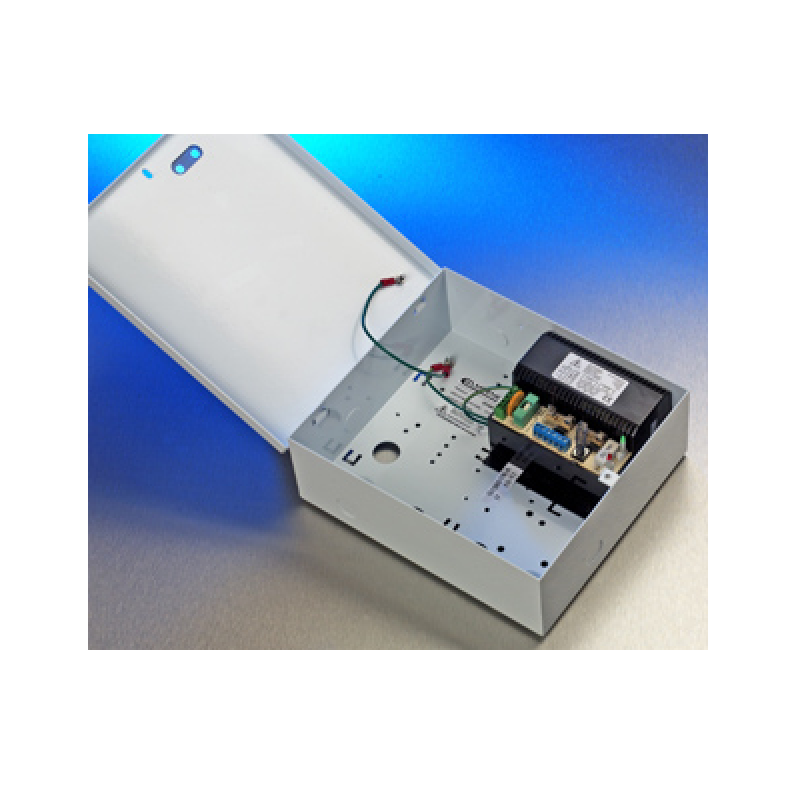

Elmdene, G13802N-B, Switch Mode 12V DC 2 Amp PSU Box (Type A - Clam Lid)

Elmdene, G13802N-B, Switch Mode 12V DC 2 Amp PSU Box (Type A - Clam Lid)

12V d.c. Switch Mode PSU(13.8V) 2Amp to load + 0.5A battery charging. Efficient Switch Mode operation. Multi LED status indication. Fit up to 17Ah battery. 'B' Box: 330h x 355w x 80d - Clam lid

High efficiency, cost effective range of Switch Mode power supplies for use in Access Control, CCTV and General Purpose applications. Modular construction provides for easy maintenance and upgrade capability. Boxed and Unboxed Models. Range now includes Dual Output 13.8V dc / 16.5V ac model. Featuring a regulated highly stable output supplying a full rated current to load and a universal mains voltage input (90 to 264 Volts a.c.)

Key Features:

• Efficient Switch Mode Operation
• Closely Regulated 13.8Vdc Output
• Full Rated Current to Load + 0.5A battery charging
• Boxed and Unboxed Models with DIN Rail Mount Option 1,2 and 3A
• Universal Mains Voltage Input 90V – 264V ac
• Electronic Overload Protection
• Mains Transient Protection
• Front Tamper Protection
• Multi LED Indication

Technical Specifications:

• Output (mains on) : 13.6 – 14.2V dc nominal
• Load Output : 2 Amp
• Mains Supply : 90 – 264V a.c. @50-60Hz
• Environment : -10C to 40C @ 95%RH
