G13805BMU-4, 12V Switch Mode PSU (13.8V) 5Amp to load + 0.5A battery charging
- Brand:Elmdene
- Product Code:G13805BMU-4
- Availability:Please Call or Email Us to Check Availability
G13805BMU-4, 12V Switch Mode PSU (13.8V) 5Amp to load + 0.5A battery charging.
Efficient Switch Mode operation. Mains and Battery monitoring with independent volt free fault outputs. Deep discarge protection. Multi LED status indication. Fit up to 17Ah battery. Unboxed

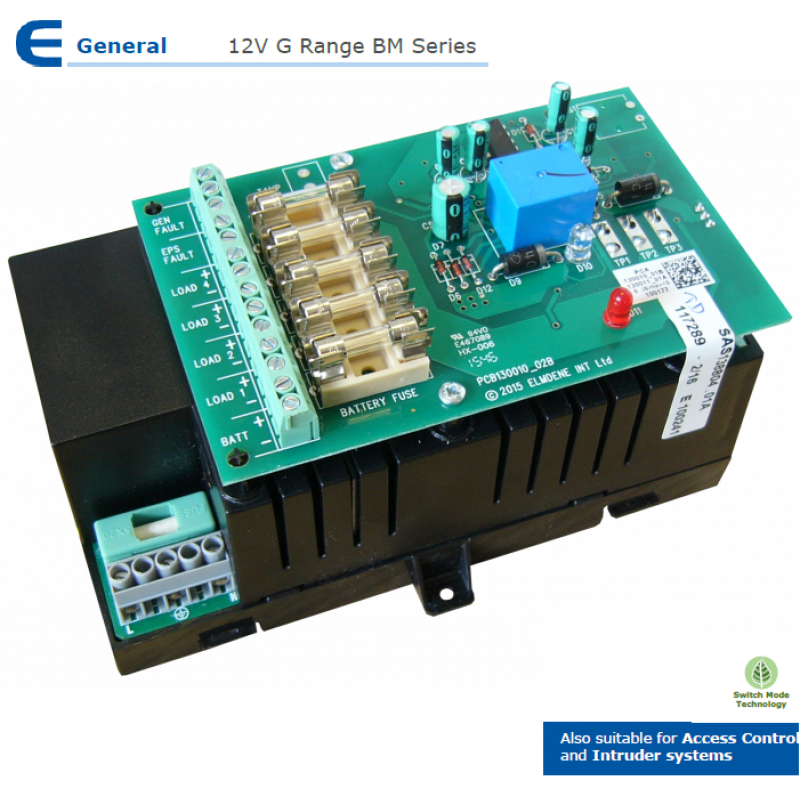

The G Range BM Series Switch Mode Power Supplies are ideal for Applications requiring mains and Battery monitoring. The units have a regulated Highly stable output supplying full rated current to load and a Universal mains voltage input Range (90 to 264V ac). G13805BMU: 13.8Vdc 5A PSU, Mains and Battery Monitoring. Unboxed Module: 152L x 106W x 71H (mm).
- 13.8V dc output
- 90 to 264V ac input range
- Cost effective switch mode technology
- Energy efficient: ▪ More efficient in operation ▪ Saves power so reducing power bills ▪ Longer life in the field ▪ Less prone to failure
- Full current to load plus additional current to charge standby battery
- Deep discharge protection
- Mains and battery monitoring
- Volt-free fault outputs: ▪ EPS fault (mains fail) ▪ GEN fault (PSU or battery fault)
- Internal LED PSU status ▪ Mains status ▪ Output fuse fail ▪ Output short circuit or low voltage ▪ Battery low or missing
- Mains transient protection
- Electronic overload protection
- Front and rear tamper
- Screen printing available
- 3 year warranty
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
