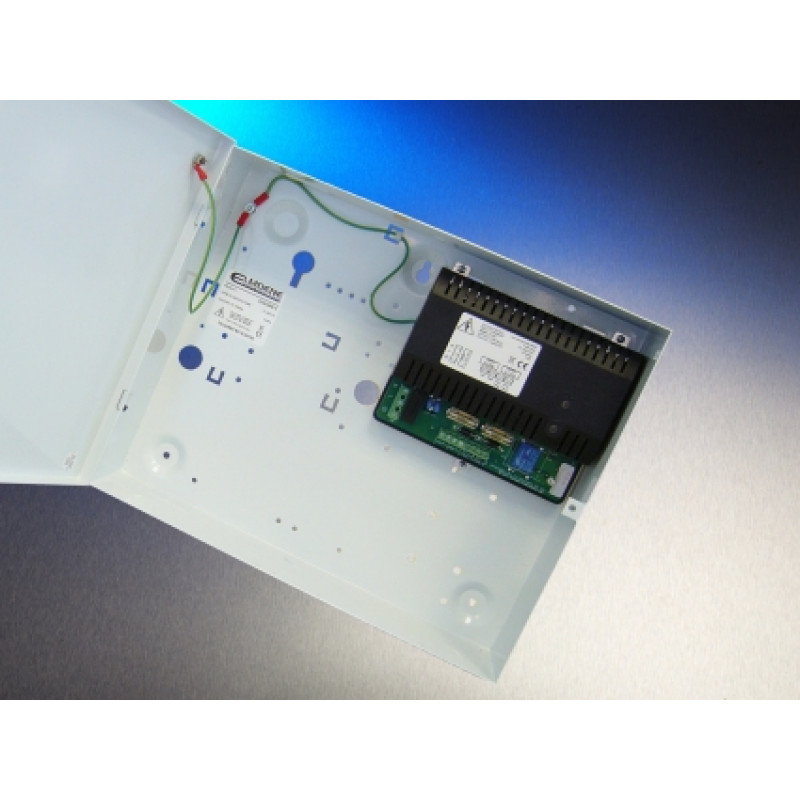

Elmdene G2405BM-R, 24V Switch Mode PSU (27.6V) 5Amp to load + 0.5A battery charging

Elmdene G2405BM-R, 24V Switch Mode PSU (27.6V) 5Amp to load + 0.5A battery charging

24V Switch Mode PSU (27.6V) 5Amp to load + 0.5A battery charging. Efficient Switch Mode operation. Mains and Battery monitoring with independent volt free fault outputs. Deep discarge protection. Multi LED status indication. Fit up to 2x17Ah battery. 'R' Box: 410h x 390w x 90d - Clam lid

The G Range BM Series Switch Mode power supplies have been specifically designed for General Purpose applications including Fire and Access Control that require Mains and Battery Monitoring combined with volt free fault outputs for remote signalling of fault conditions. Boxed and Unboxed models.

'G' Range 'BM' Range Features:

• Efficient Switch Mode Operation
• Closely Regulated 27.6V Output
• Full Current To Load + 0.5A to Charge Standby Battery
• Universal Mains Voltage Input 90V – 264V ac
• Mains and Battery Monitoring
• Battery Deep Discharge Protection
• Modular Construction for ease of Servicing
• LED Indication:
  • Green:  Mains Status
  • Yellow: Mains Failure, Output or Battery Fuse Failure, Battery Low or Missing,
    Output Short Circuit or Low Voltage Output
• EPS - Volt Free Fault Output:
  • Mains Failure
• GEN - Volt Free Fault Output:
  • Output or Battery Fuse Failure, Battery Low or Missing,
    Output Short Circuit or Low Voltage Output
• Electronic short circuit protection 3 & 5A models (under mains power)
• Mains Transient Protection
• FOM 4 or 8 can be fitted to provide 4 or 8 individually fused outputs

Specifications:
