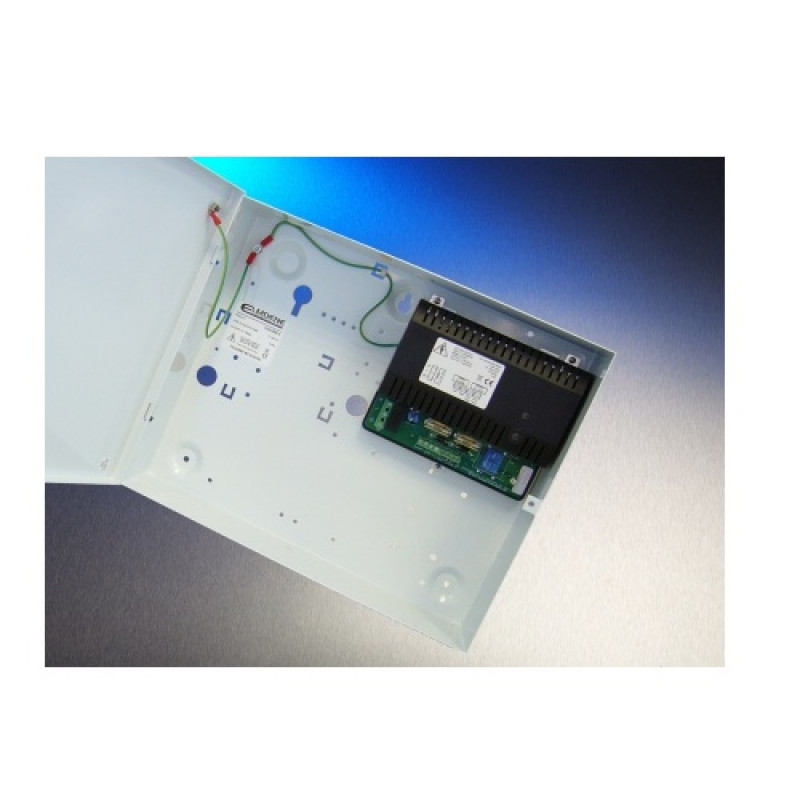

Elmdene, G2401BMU, 24V 1.0A Switch Mode Power Supply (Battery Monitored Range)

Elmdene, G2401BMU, 24V 1.0A Switch Mode Power Supply (Battery Monitored Range)

The G Range BM Series Switch Mode power supplies have been specifically designed for General Purpose applications including Fire and Access Control that require Mains and Battery Monitoring combined with volt free fault outputs for remote signalling of fault conditions. Boxed and Unboxed models.

Features:

• Efficient Switch Mode Operation
• Closely Regulated 27.6V Output
• Full Current To Load + 0.5A to Charge Standby Battery
• Universal Mains Voltage Input 90V – 264V ac
• Mains and Battery Monitoring
• Battery Deep Discharge Protection
• Modular Construction for ease of Servicing
• LED Indication:
• Green:  Mains Status
• Yellow: Mains Failure, Output or Battery Fuse Failure, Battery Low or Missing,
  Output Short Circuit or Low Voltage Output
• EPS - Volt Free Fault Output:
• Mains Failure
• GEN - Volt Free Fault Output:
• Output or Battery Fuse Failure, Battery Low or Missing,
  Output Short Circuit or Low Voltage Output
• Electronic short circuit protection 3 & 5A models (under mains power)
• Mains Transient Protection
• FOM 4 or 8 can be fitted to provide 4 or 8 individually fused outputs

Specifications:

• Output (mains on): 27.6V dc nominal
• Load Output: 1,  2, 3, 5 Amp
• Max Battery Capacity: C Box 2x7Ah, R Box 2 x 17Ah - not supplied
• Mains Supply: 90 - 260V @50/60Hz
• Environment: -10C to 40C @ 95%RH
• Unboxed 152L x 106W x 52D
