Elmdene, AMS-G13803-P, 12V DC 3 Amp Switch Mode PSU + 1 Year Warranty (IP65)

Elmdene, AMS-G13803-P, 12V DC 3 Amp Switch Mode PSU + 1 Year Warranty (IP65)

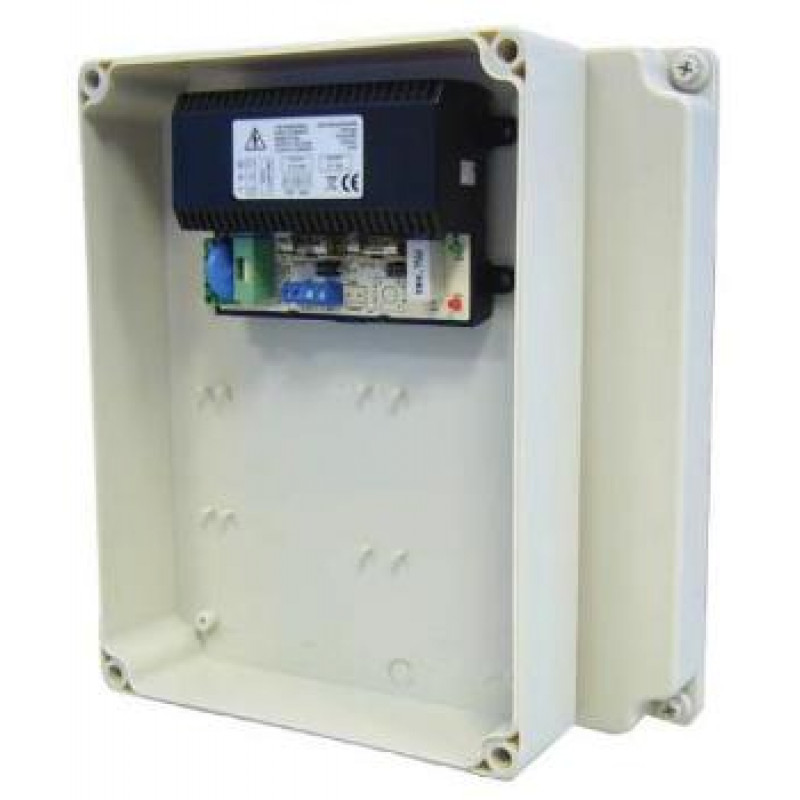

The Amseco range of low cost power supply units are IP65 rated and designed for use in general internal and external applications. Featuring battery charging, they are available in 3A and have a fully regulated 13.8V dc output. Made of 3mm ABS, the power supply units can house a 7Ah battery. They come with an opaque lid giving a neat, concealed solution.

To provide the maximum flexibility, the units are supplied without fixed cable entries allowing installers to put the glands wherever required according to the individual application.

Features:

• High effi ciency and cost effective switch mode technology
• Fully regulated 13.8V dc output
• Full rated current to load
• Battery charging
• Electronic short-circuit protection
• Mains present and fault indication LEDs
• Installer safe, shrouded high voltage electronics
• Replaceable 20mm mains and output fuses
• Universal 90 – 264V as mains supply
• IP65 rated
• 1 year warranty

Specification:

• Mains input: 90V ac – 264V ac
• Output: 13.8V dc
• Maximum current: 3 A
• Operating temperature: -10°C to 40°C
• Dimensions(L x W x D): 247 x 187 x 80mm
• Weight: 780g
