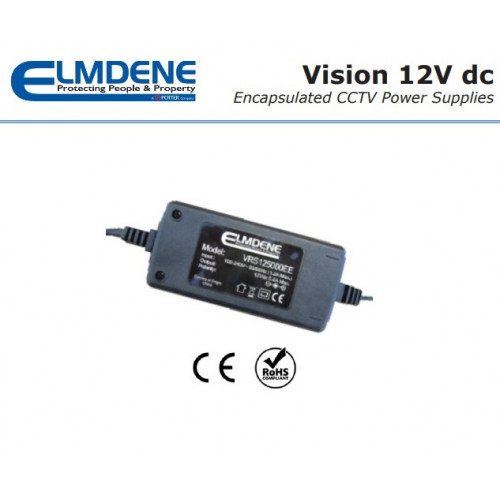

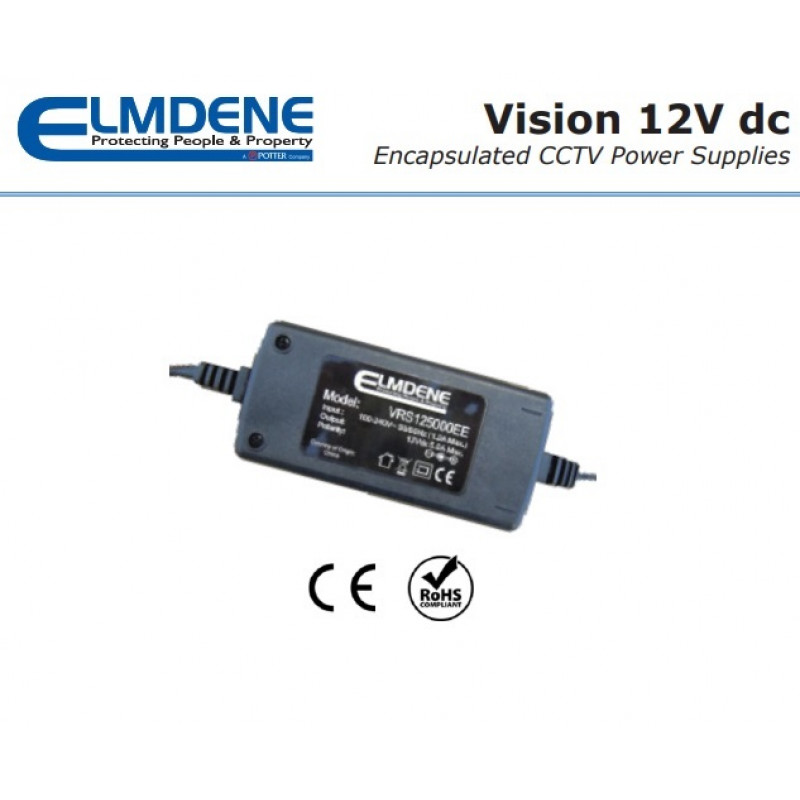

VRS125000EE, 12V d.c. Switch Mode PSU 5Amp. Encapsulated in plastic case. Ideal for CCTV

VRS125000EE, 12V d.c. Switch Mode PSU 5Amp. Encapsulated in plastic case. Ideal for CCTV.  Output flying lead fitted with 2.1mm jack connector. Mains - moulded European plug. Size 120x50x30.

• Fully regulated 12V dc output
• High efficiency switch mode operation
• Full rated current to load
• Electronic short circuit protection
• Mains status indication (3.5A & 5A)
• Universal 100 – 240V ac mains supply
• Compact size
• Fitted with UK 13A plug or Euro plug
• 2.1mm dc output jack socket on flying lead
• 4-way and 8-way 2.1mm dc output splitters available
• 3 year warranty

Elmdene’s Vision 12V dc encapsulated power supplies have been designed specifically for CCTV applications. The range comprises of 1A, 2A, 3.5A and 5A models. The units feature a universal mains input voltage range from 100 to 240V ac and includes electronic short circuit protection and mains status indication (3.5A and 5A models only). They also use high efficiency switch mode operation which means lower running temperature and lower running costs.

The units have a neat and compact design and come fitted with either a UK or Euro mains plug. The 2A, 3.5A and 5A versions are available with a 4-way 2.1mm dc output splitter as an option. Elmdene’s Vision range feature highly stable, closely regulated 12V dc outputs at full rated current to load. The products are designed to provide reliablility and perfomance with low maintenance and operational costs.

Technical Specifications:

• OUTPUT: 12V dc
• MAINS LEAD (LENGTH): 1200mm
• OUTPUT POWER LEAD (LENGTH): 1500mm

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
