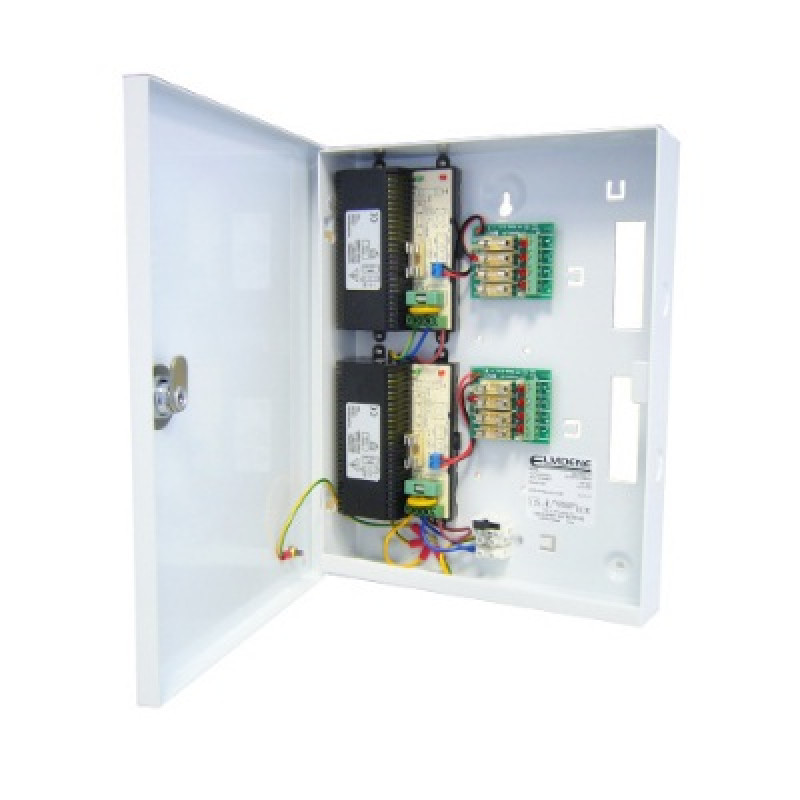

Elmdene, VRS128000-8-T, 12V DC 8 x 1A Switch Mode PSU (Hinge Lid)

Elmdene, VRS128000-8-T, 12V DC 8 x 1A Switch Mode PSU (Hinge Lid)

12V d.c. Switch Mode PSU8Amp. 8 x fused outputs. Ideal for CCTV. 'T' Box: 300h x 240w x 50d - Hinge Lid

12V dc CCTV range of power supplies consists of both low-profile and IP68 variants. The units are available in either 4A or 8A power ratings with options of up to 16 individually fused output circuits. Individual fused outputs can provide isolation of selected circuits when servicing or in the event one circuit fails, allowing the rest of the system to operate normally, maintaining system integrity. All units feature ‘fuse health’ LED’s which are illuminated to show that each powered circuit is functioning correctly. Each fused output circuit may have different value fuses to suit the individual loads eg cameras, lighting etc. The 4A versions possess a hinged screw lid. Cable entry is achieved by utilising either cable gland knockouts or via the allocated rear cable entry points of the enclosures.  For external use, the IP68 models (4A) are provided without cable entry points allowing the installer to choose the primary locations to suit the instalation.

Key Features:

• Individual ‘fuse health’ LED indication
• White powder coated 1.2mm steel enclosure
• Low profile design (50mm)
• High efficiency and cost effective switch mode technology
• Fully regulated 12V dc output
• Full rated current to load
• Electronic short-circuit protection
• Installer safe, shrouded high voltage electronics
• Replaceable 20mm mains and output fuses
• Universal 90 – 264V ac mains supply
• Multiple cable entry/exit options
• Modular construction for easy servicing
• 3 year warranty

Technical Specifications:

• Mains input : 90V ac – 264V ac
• Output : 12V dc
• Maximum current: 8A
• Operating temp. : -10°C to 40°C at 95% RH

For more details, please refer with our attached datasheet.
