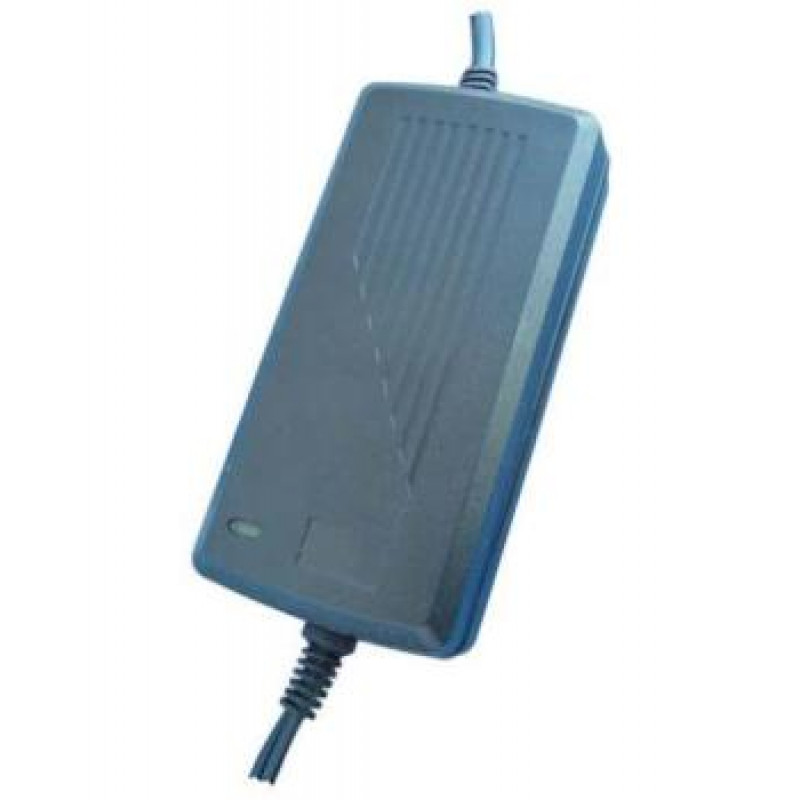

Elmdene, VRS121000EE, 12V DC 1 Amp Switch Mode Encapsulated Power Supply

Elmdene, VRS121000EE, 12V DC 1 Amp Switch Mode Encapsulated Power Supply

Elmdene’s Vision 12V encapsulated power supplies have been designed specifically for CCTV applications.

The units feature a universal mains input voltage range from 100 to 240V ac and includes electronic short circuit protection.They also have high efficiency switch mode operation which means lower running temperature and lower running costs.

The encapsulated devices all have a neat, compact design and come fitted with a European plug (EE).

Elmdene’s Vision range feature highly stable, closely regulated 12V dc outputs at full rated current to load. The products are designed to provide reliablility and perfomance with low maintenance and operational costs.

Features:

• Fully regulated 12V dc output
• High efficiency switch mode operation
• Full rated current to load
• Electronic short circuit protection
• Universal 100 – 240V ac mains supply
• Compact size
• Fitted with European plug
• 2.1mm dc output jack socket on flying lead
• 3 year warranty

Specification:

• Mains input 100V: 240V ac at 50Hz
• Output: 12V dc nominal
• Operating temperature: -10°C to 40°C at 95% RH
• Dimensions(L x W x D): 65 x 45 x 25mm
• Weight: 170g
• Length of mains lead: approx 1200mm
• Length of output power lead: approx 1500mm
