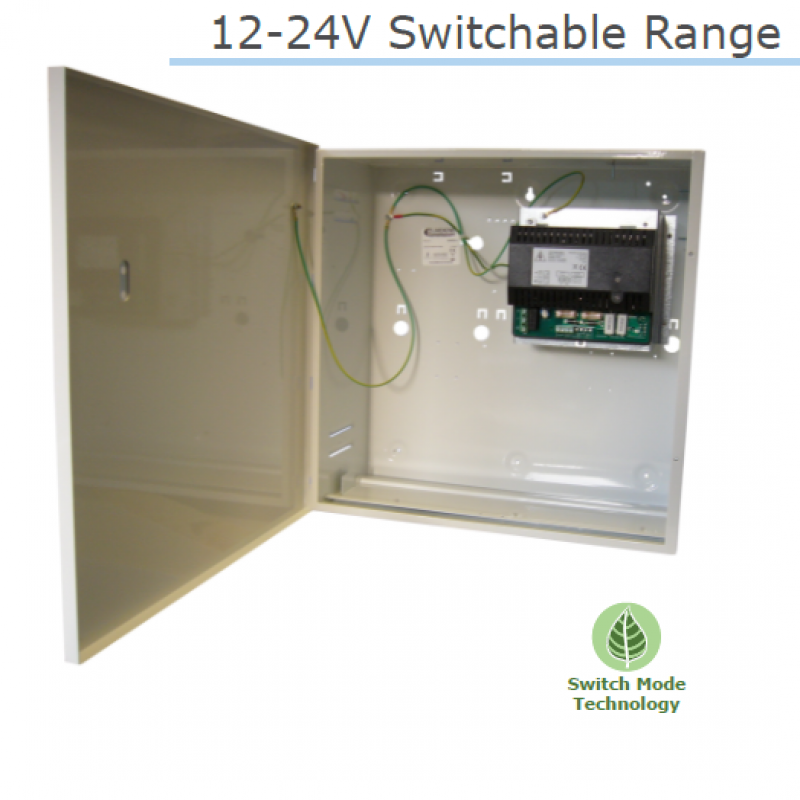

G1224-84N-H, Switchable 12V dc (13.8V) 8Amp / 24V dc 4Amp (27.6V) SMPSU - 'H' Box

G1224-84N-H, Switchable 12V dc (13.8V) 8Amp / 24V dc 4Amp (27.6V) SMPSU -  'H' Box: 420h x 420w x 180d - Fit up to 2x38Ah batteries

The new ‘switchable’ 12V dc / 24V dc switch mode range of power supplies has been designed for access control, CCTV and general purpose applications that require the use of a standby battery. All models possess a mains fail relay output and an independent ancillary relay that can be used for applications such as a ‘Fire’ door release relay. There are two enclosures available to house either 12V 7Ah or 17Ah batteries. The products use energy efficient switch mode technology and therefore have a universal mains supply input (90—264V ac).

On installation the units can be setup to provide either 13.8V or 27.6V dc by a simple PCB selection switch. They are available in three power variants with multi-fused output models if required.

Three power variants available are:

• 13.8V dc 8A / 27.6V dc 4A
• 13.8V dc 6A / 27.6V dc 3A
• 13.8V dc 4A / 27.6V dc 2A

All with full rated current to load and featuring a fully regulated output with low ripple and noise. Unboxed (module only) versions are also available if required.

Features:

• Switchable 13.8V / 27.6V dc output
• Cost effective switch mode technology
• High energy efficiency - reducing energy bills
• Mains Fail relay output
• Independent ancillary relay
• Modular construction means easy maintenance and upgrading
• Full rated current to load + 0.5A battery charging
• 90 to 264V ac range
• Electronic overload protection
• Mains transient protection
• LED indication: ▪ Mains status ▪ Load output or PSU fuse fail ▪ Output short circuit or low voltage ▪ Battery low or missing
• Screen printing available
• Bespoke models available on request
• 3 year warranty

Technical Information:

• Mains Input: 90V–264V ac @ 50–60Hz
• Output (switchable): 13.8V dc / 27.6V dc
• H Enclosure Size Max Battery: 420H x 420W x 180D (mm) 12V Mode (1 x 12V 38Ah) 24V Mode (2 x 12V 38Ah)
• Operating Temperature: -10°C to 40°C at 95% RH

For more details, please refer with our attached datasheet.
