G1224-63NU, Un-boxed Switchable 12V dc (13.8V) 6Amp / 24V dc 3Amp (27.6V) SMPSU
- Brand:Elmdene
- Product Code:G1224-63NU
- Availability:Please Call or Email Us to Check Availability

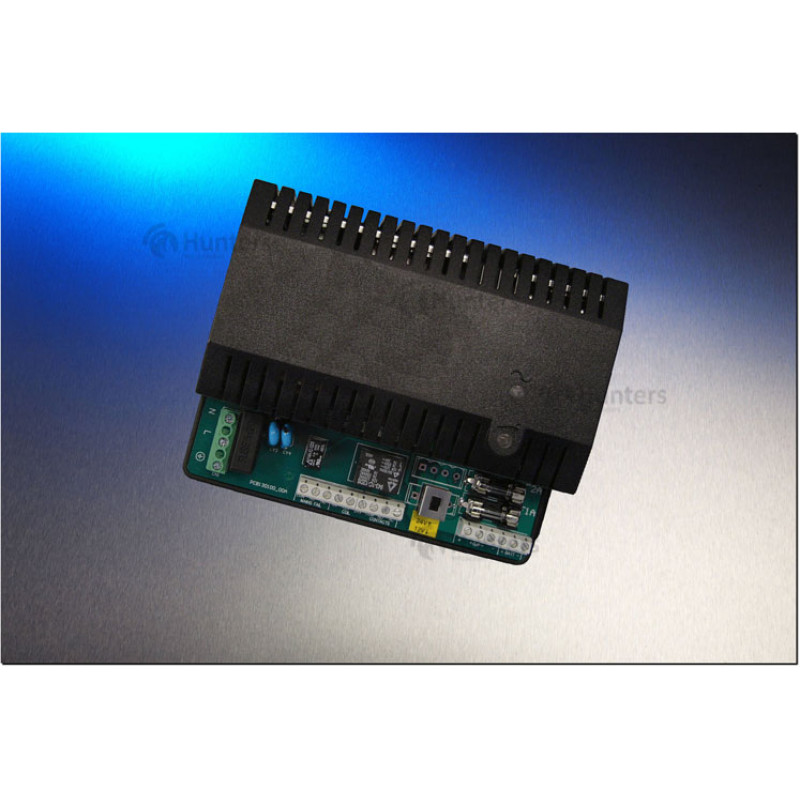

Elmdene G1224-63NU, Switchable 12V dc (13.8V) 6Amp / 24V dc 3Amp (27.6V) SMPSU - Unboxed (Module Only) - 157Lx143Wx55H (mm)
Switch Mode - Selectable 12/24V dc Power Supplies
Selectable 12V or 24V High efficiency, cost effective range of Switch Mode power supplies featuring Mains Monitoring and an independant Ancillary Relay which can be used as a fire door release etc. Typically for use in Access Control but also suitable for CCTV and General Purpose applications. Modular construction provides for easy maintenance and upgrade capability. Boxed and Unboxed Models.
\'12-24\' Range Features:
- Switchable 13.8V - 27.6V dc output
- Efficient Switch Mode Operation
- Full Rated Current to Load + 0.5A battery charging
- Boxed and Unboxed Models
- Universal Mains Voltage Input 90V – 264V ac
- Mains Monitoring with Fault Output
- Independent Ancillary Relay
- Electronic Overload Protection
- Mains Status LED Indication
- Mains Status
- Output Fuse Fail
- Output Short Circuit
- Battery Low or Missing
- Mains Transient Protection
- 3 Year Warranty
Specifications:
| Output (mains on) | 13.8V or 27.6V dc nominal |
| Load Output | 2 - 8A dependent on model and voltage o/p |
| Max Battery Capacity | \'C\' Box 2 x 7Ah |
| Mains Supply | 90 - 264V a.c. @50-60Hz |
| Environment | -10C to 40C @ 95%RH |
Enclosure:\'C\' Box 275H x 330W x 80D - hinge lid |
