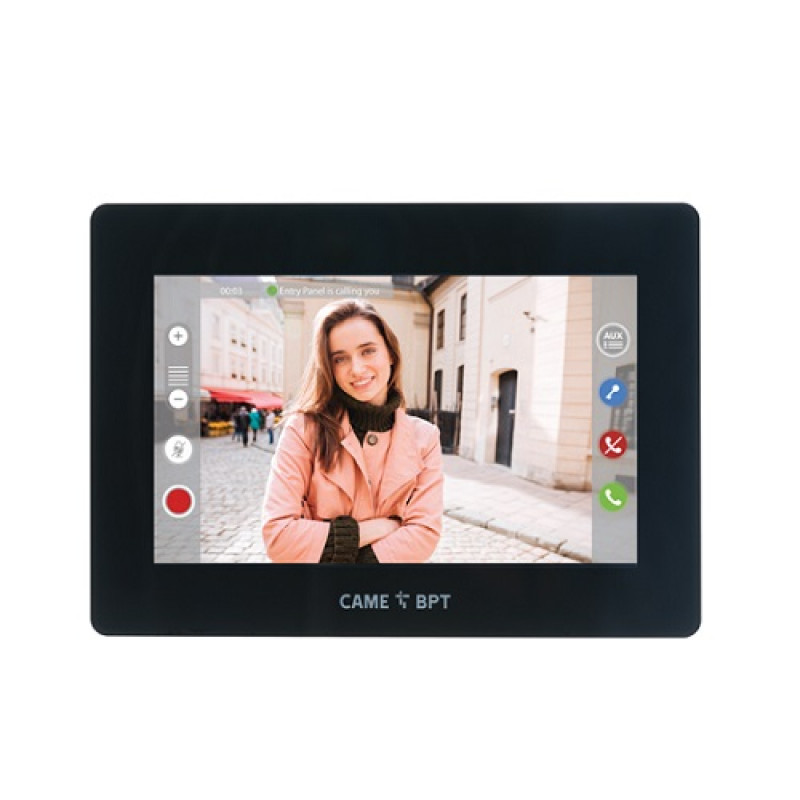

CAME (XTS/5IP BK) 5 Inch Screen, System IP360 XTS Monitor - Black

CAME (XTS/5IP BK) 5 Inch Screen, System IP360 XTS Monitor - Black

Full-touch speaker video intercom for IP360 system, 5˝ TFT touch screen display, with Graphical User Interface - black.Wall monitor with 5˝ TFT touch screen display with Optical Bonding technology. User interface for managing video intercom functions, intercom calls, video-messaging, and text messaging. It uses SIP protocol and G711 audio codec and H.264 video codec. RJ45 port for network, PoE or local connection. On-board web server for configuring and updating firmware. It includes brace for wall-mounting on 503 box (horizontal) and Ø 60 mm round box. Ready for flush mounting with dedicated box. Compatible with IP360 system.

Key Features:

• Full-duplex audio speakerphone
• 5˝ TFT display Full touch-screen with Optical Bonding anti-glare technology for enhanced readability in brightly lit settings
• RJ45 port for directly connecting to the Ethernet
• Local or PoE (Powered over Ethernet) power supply
• Customizable user interface with UI Creator software
• Configurable quick controls (default main entrance door-opener)
• List of AUX commands for activating auxiliary functions
• "Panic" function for emergency calls to the porter (if present on the system)
• Audio video settings: ringtone volume, display brightness, interface backgrounds
• Different ringtones for entry panels and landings
• Exclude ringtone key (the alert LED lights up when silenced)
• Self-inserting video of entry panels with cyclic selection
• Unlimited calls to other receivers and smartphones and tablets
• Contacts list and favorites list
• Video answering service, stores up to 100, 10-second audio and video messages.
• Audio and video recording during conversations
• Sending and receiving text messages from the porter
• Live feeds of the connected IP video cameras
• Business function: for automatic door opening during business hours
• Block display function for cleaning
• Standard SIP protocol, H.264 video codec, G711 audio codec
• On-board web server for configuring and managing via the browser

Key Features:

• Dimensions (mm): 138 x 98 x 24
• Local power supply (V): 14 ÷ 18 DC
• PoE power supply: IEEE 802.3af-PD
• Consumption in stand-by mode (mA): 270
• Max. absorption (mA): 330
• Operating temperature (°C): 0 ÷ +40
• Protection rating (IP): 30
• Video standard: H.264
• Colour: Black

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
