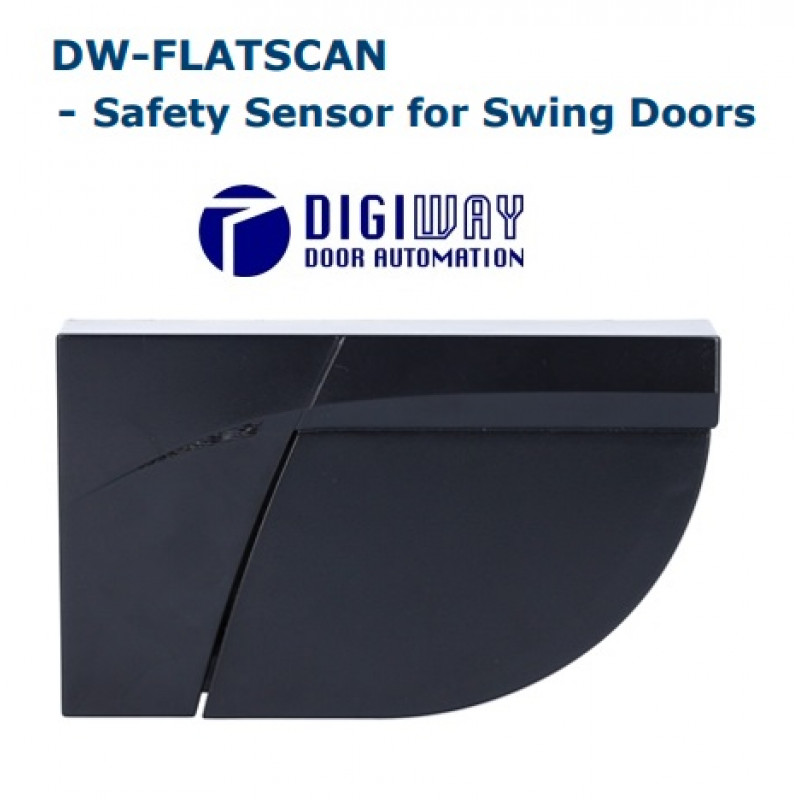

CDV (DW-FLATSCAN) Laser safety sensor for swing doors

CDV (DW-FLATSCAN) Laser safety sensor for swing doors

The DW-FLATSCAN sensor is a new addition to our range of door automation sensors, featuring cutting-edge laser technology to create an extremely accurate and reliable safety solution for swing door operators.

The DW-FLATSCAN accomplishes this using lasers and 'time of flight' technology, rather than traditional infrared detection. The unit generates a laser curtain, measuring 170 points divided over 106 degrees. It covers two zones at the same time: the door wing (70 points over 90 degrees) and the hinge area (100 points over 16 degrees).

The technology allows for both very discreet, aesthetically pleasing installations as well as improved safety to the door and hinge area.

• Touchless laser safety device
• Extremely accurate and reliable detection
• 170-point laser detection over 106° angle
• Self-learning installation
• Self-adjusting in operating
• Ideal for DIGIWAY door operators

TECHNICAL INFORMATION:

• Material: PC/ASA, Aluminium
• Mounting: Top corner on door hinge
• Technology: Laser & 'time of flight' measurement
• Max range: 4m (diagonal) with 2% of reflectivity
• Power input: 12-24Vdc
• Consumption: 2W
• IP54 rated
• 142 x 85 x 33mm

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
