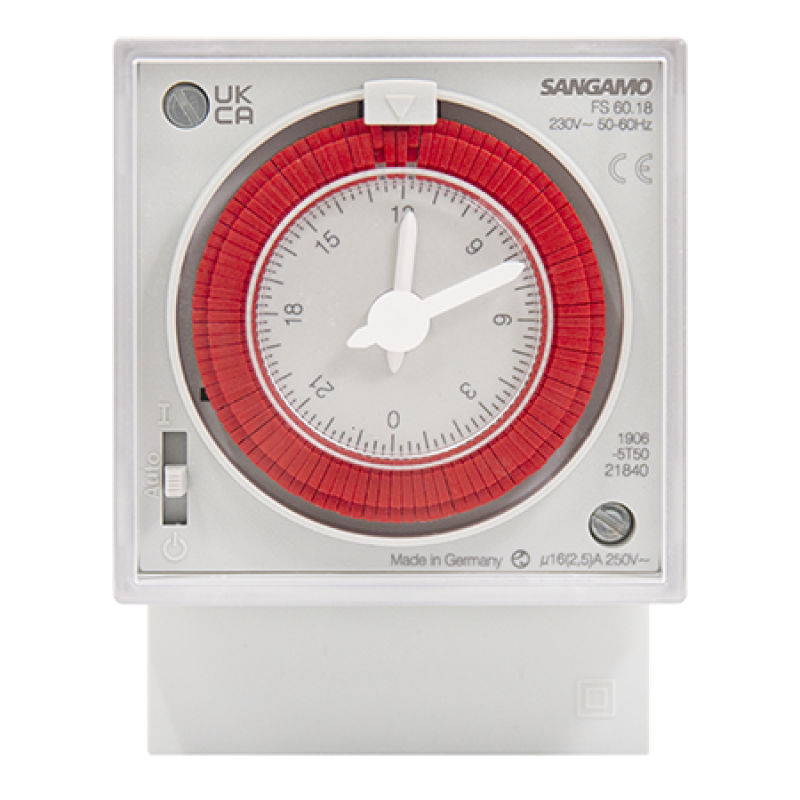

SANGAMO (PA16622) PANEL 24HR ANALOGUE TIME SWITCH
- Brand:ESP
- Product Code:PA16622
- Availability:Please Call or Email Us to Check Availability
SANGAMO (PA16622) PANEL 24HR ANALOGUE TIME SWITCH
- Voltage free 16A changeover contact
- Suitable for Surface, Panel or Din rail mounting
- Programming by 15 min captive segments
- Manual override with automatic return to program
- Contact status display
Technical Specifications:
| Power Supply | 230V AC, 50/60Hz |
| Programming | 24 hour |
| Display | Analogue |
| Mounting | Optional |
| Current Rating | 16A |
| Switching Capacity | Resistive load 16A 250V Voltage free inductive load (cos = 0.6) 2.5A 250V Incandescent lamp 2000W 250V |
| Reserve | na |
| Switching Operations | 96 per day |
| Temperature Range | -10°C to +50°C |
| Storage Temperature | -10°C to +50°C |
| Connection by cage terminals, section of conductors | 0.5 to 4 mm2 |
| Insulation class | 2 |
| Protection | IP20 |
| Dimensions | 72 x 94.5 x 48.4 mm (Face 72 x 72mm) |
| Complies with | BS EN 60730 |
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
