Scope, TLINK12V, Telemetry System for One-Way Link
- Brand:Scope Communications
- Product Code:TLINK12V
- Availability:Please Call or Email Us to Check Availability
Scope, TLINK12V, Telemetry System for One-Way Link

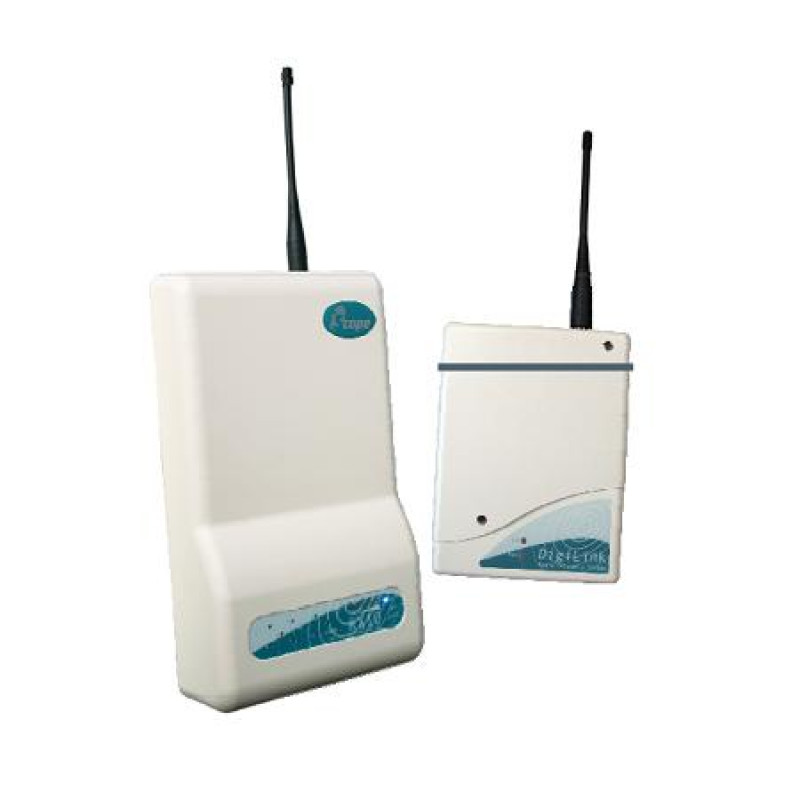

T-Link takes a 5-zone DigiLink transmitter and combines it with a RX10 receiver and two aerials to pr oduce an ‘off the shelf’ one-way radio link between fire or intruder panels. The transmitter has five input zones which can be triggered by volts-free opening or closing contacts or can be configured to accept ’voltage applied’ or ‘voltage removed’
The system is supplied pre-co nfigured to operate ‘change-of- state’, so a closing contact at the transmitter sends a signal to the receiver to activate the corresponding zone output relay. When the transmitter input is de-activated, the relay is deactivated so the output actually ‘follows’ the input.
A programming kit is available if you need to reconfigure the system. Additional transmitters and receivers can be added when needed.
For more details, please refer with our attached datasheet.
