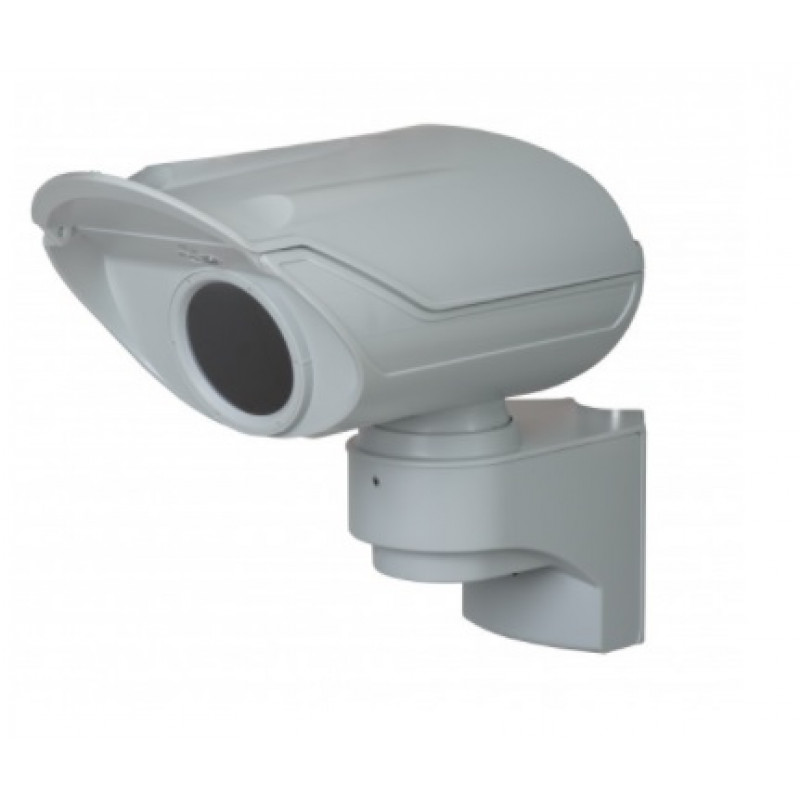

PRO-E-45H, Ext PIR M-rng Curtain, Heater

PRO-E-45H, Ext PIR M-rng Curtain, Heater

The PRO-E-45H is suitable for harsh outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional.

Key Features:

• Medium range curtain detection of 50m x 3.3m (PRO-E-45) and (PRO-E-45H) 60m x 3.9m
• Integrated cable management system
• Designed for one-man commissioning
• Sophisticated 3D-tamper (pan/tilt/move) including a compass, slow panning
• Special tamper protection
• Creep zone starts 1m behind detector location
• Detection speeds crawling, walking or running – 0.2 – 5 metres per second
• Incorporates mounting brackets
• PRO-E-45H incorporates heater for cold environments.

Specifications:

• Sensitivity: Default sensitivity 40%, 75% & 100% (% of standard)
• Operating temperature range: HDPE - filter version without heater -20⁰C to +60⁰C Silicon wafer version with heater -20⁰C to +60⁰C
• Environmental class: Designed to fulfil EN50131-1 / IEC62642-1:2010 Environmental Classification (Class IV - Outdoor)
• Housing material: Luran® (ASA)
• Mounting: Wall and pole mounting, cable management bracket included.
• Detection characteristics / range: 60m x 3.9m (Lx W) -1m and up to +8m near surrounding area
• Supply voltage: 10.5 - 30 VDC, 24VAC+/- 15% auto-sensing, excluding heater
• Operating temperature: -20⁰C bis +60⁰C
• Cable entry: diameter 2 x 4-7mm
• Dimensions (L x W x H): 358mm x 188mm x 290mm
• Sensitivity adjustment: 20% - 140% (% of standard)
• Housing protection: IP65
• Alarm output: Programmable for IR Alarm, 360 Protect & Anti-mask.

For more details, please refer with our attached datasheet.
