PDM-IXA18, DUAL Detector 10.525GHz

PDM-IXA18, DUAL Detector 10.525GHz

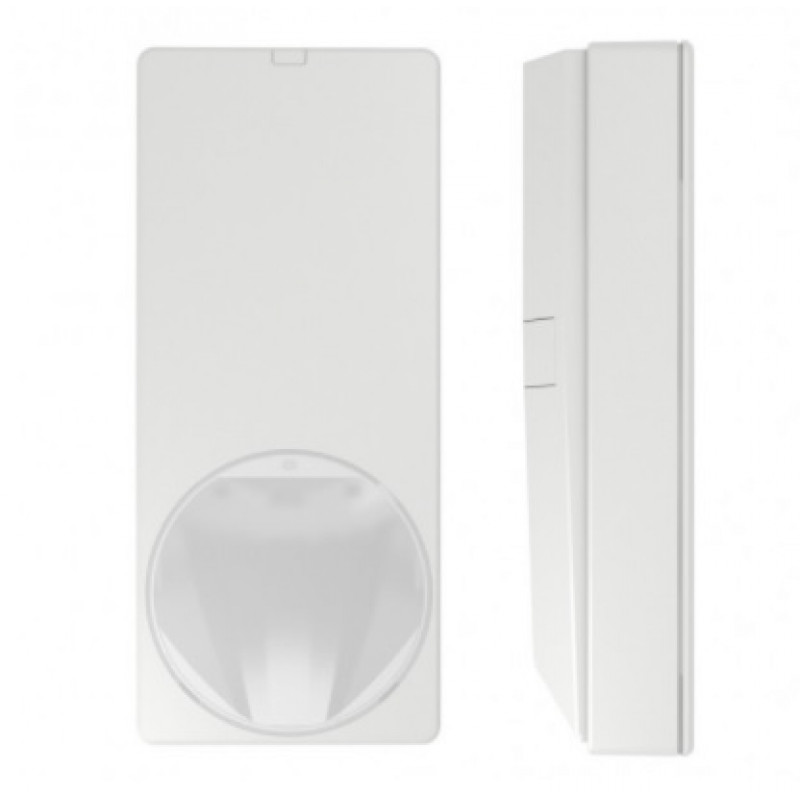

MAGIC motion detector PDM-IXA18 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of in-truders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).

Specifications:

• Walking speed: 0,2 ... 3,0 m/s / 0,2 ... 3,0 m/s
• Microwave (MW): 10.525 GHz
• Approval: EN50131-2-4 grade 2
• Supply voltage: 9 ... 16 VDC (12 V nom.)
• Outputs: 30 VDC / 100 mA, NC
• Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
• Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
• EOL resistor: RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
• Air humidity (EN 60721): < 95% RH, non-condensing
• Operating temperature: - 10° ... + 55°C
• Storage temperature: - 20° ... + 60°C
• Pet immunity: yes (option)
• Current consumption: 4.8 mA (rms) 9.0 mA (max peak)
• Sensitivity evaluation mode: 6 settings
• Colour: RAL9003
• Housing protection (EN 60529): IP41 / IK02
• Optical system: MAGIC mirror
• Detection characteristics / range: Volumetric / 18 m.

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
