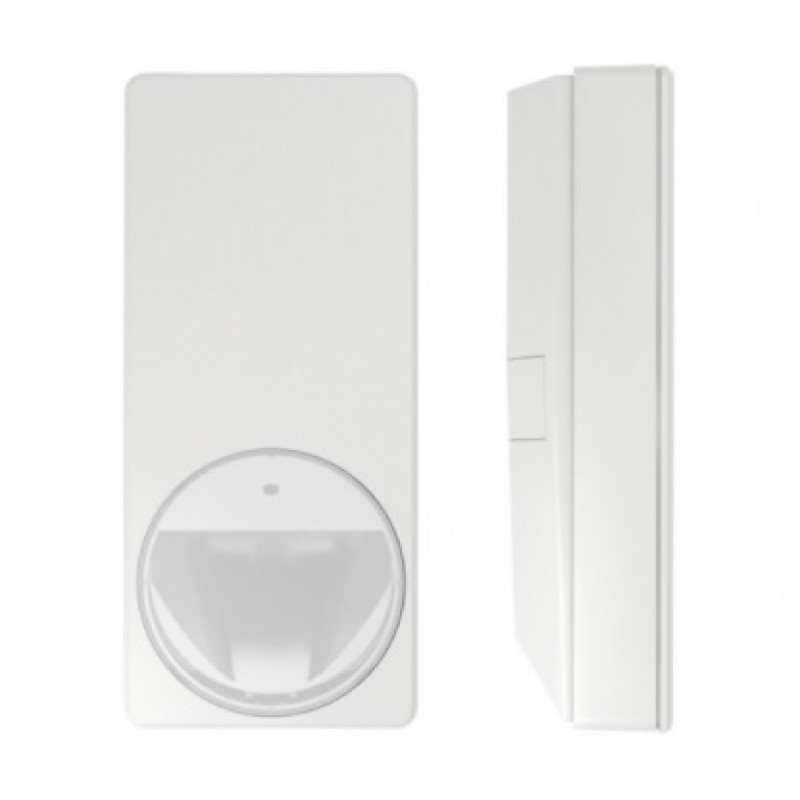

PDM-IXA12, DUAL Detector 10.525GHz

PDM-IXA12, DUAL Detector 10.525GHz

MAGIC motion detector PDM-IXA12 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).

Key Features:

• Unmatched detection performance based on patented MAGIC mirror technology
• High immunity against false alarms
• 12m volumetric optics with undercrawl protection – 20m gapless curtain (option)
• Unique End-of-line concept eliminates time-consuming resistor wiring
• Flexible, fast and error-free installation with sensitivity adjustment and pet immunity (option)
• Compliance with latest approval standards such as VdS, VSÖ, INCERT, NF, IMQ, SBSC, etc.
• Modern and elegant design
• Low power consumption.

Specifications:

• Walking speed: 0,2 ... 3,0 m/s / 0,2 ... 3,0 m/s
• Microwave (MW): 10.525 GHz
• Approval: EN50131-2-4 grade 2
• Supply voltage: 9 ... 16 VDC (12 V nom.)
• Outputs: 30 VDC / 100 mA, NC
• Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
• Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
• EOL resistor: RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
• Air humidity (EN 60721): < 95% RH, non-condensing
• Operating temperature: - 10° ... + 55°C
• Storage temperature: - 20° ... + 60°C
• Detection characteristics / range: Volumetric / 12 m
• Pet immunity: yes (option)
• Current consumption: 4.8 mA (rms) 9.0 mA (max peak)
• Colour: RAL9003
• Housing protection (EN 60529): IP41 / IK02
• Optical system: MAGIC mirror
• Sensitivity evaluation mode: 6 settings.

For more details, please refer with our attached datasheet.
