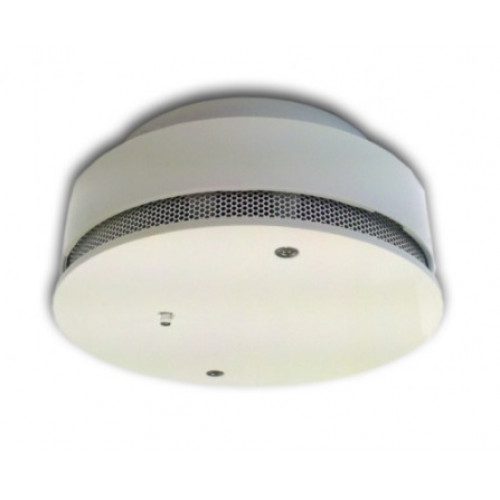

HDv3007OS, Smoke Alarm Device

HDv3007OS, Smoke Alarm Device

Battery powered stand-alone smoke alarm device for detection and alarming in domestic and small system applications, certified by the VdS according to the EN14604:2005. The device is equipped with an internal siren (min. 85 dB) for acoustical and a LED for optical alarm indication. The detector can be equipped with a relay modul to additionally address external alarm devices or to connect to an alarm system. The relay module is not included in the standard scope of delivery and has to be ordered as a separate unit.

Key Features:

• Stand-alone smoke detector, battery powered
• Optional relay / wireless modules available
• VdS approved (Stand-alone version)
• Approved for the use in caravans and camper vans according to EN 14604, Appendix L
• 10 years battery life (stand-alone version)
• Easy base and detector installation via kick-in technology
• Intelligent evaluation sensor technology
• Battery charging control, pollution measurement and indicator
• Pre-alarm function for bedewing.

Specifications:

• Sound level: >85 dB (3m)
• Operation temperature: -10 ~ +60 °C
• Operating voltage: 9 V
• Operating temperature: -10 ~ +60 °C
• Detection characteristics / range: 60 m2 upp till 6 m takhöjd
• Battery: Lithium. Anerkannte Batterietypen: FDK CP-V9J, Ultralife U9 VL-J / -P, Panasonic Power Alkaline 9V, Varta 4022 Alkaline 9V, Alkaline Xtreme 6LR61 9V.
• Area coverage: 60 m2 to 6 m height
• Approval: EN 14604:2005
• Housing protection: IP40
• Housing material: ABS.

For more details, please refer with our attached datasheet.
