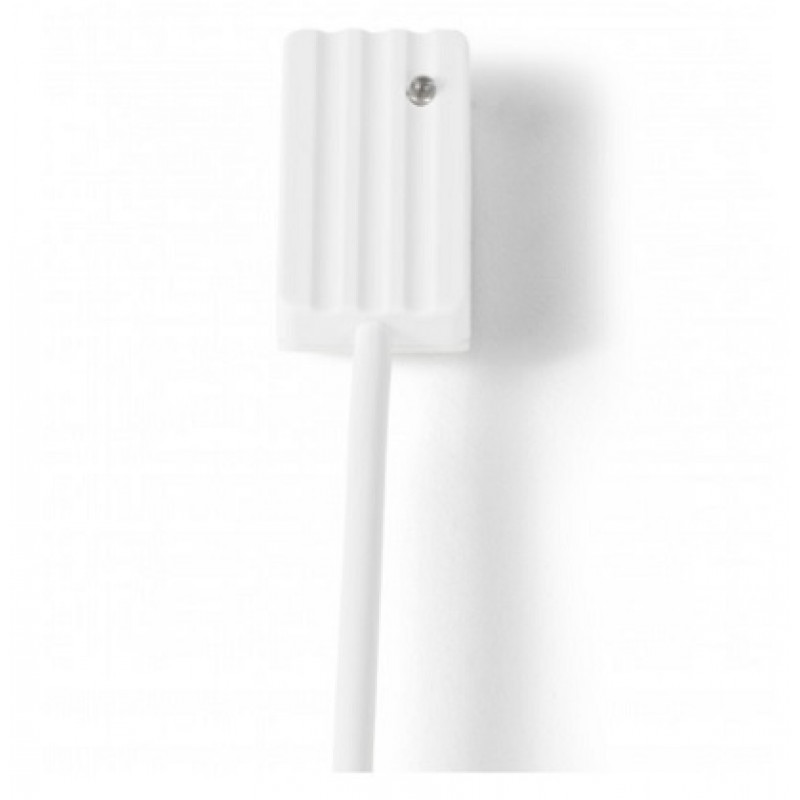

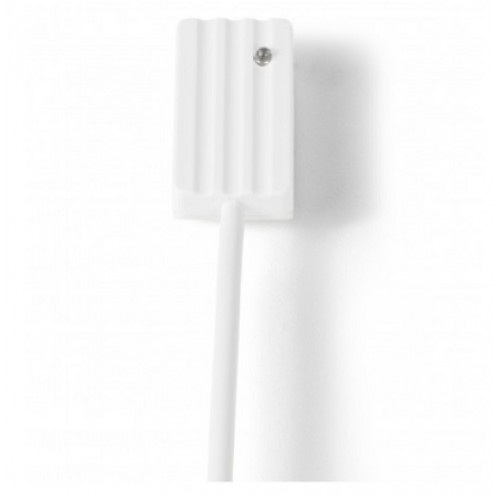

GB-5700-2, Glassbreak Detector,2m,laminated

GB-5700-2, Glassbreak Detector,2m,laminated

The glassbreak-detector is specially developed for working on laminated glass area within a radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). Attention: Glueset differs from the glue dedicated to GB-5100 and GB-5300 Because the glass-surface is not plane, a surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass, because the wire netting is damping the mechanical oscillations. The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit. Secondary Packaging: 30 Units.

Key Features:

• Large coverage area
• Low currant consumption
• Visual alarm indication
• Versions with either current of relay outputs
• Version for laminated glass.

Specifications:

• Approval: EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
• Reset voltage: Max. 1 V
• Current consumption, quiescent: ˂1 µA (ca. 20 nA)
• Current consumption: 3.5 mA (6 VDC)
• Supply voltage: 3 – 16 V DC
• Cable length: 2 m
• Environmental class: III
• Housing protection: IP67
• Housing material: S-B
• Operating temperature: -25 ~ 70 °C
• Quiescent current: ˂1 µA (ca. 20 nA).

For more details, please refer with our attached datasheet.
