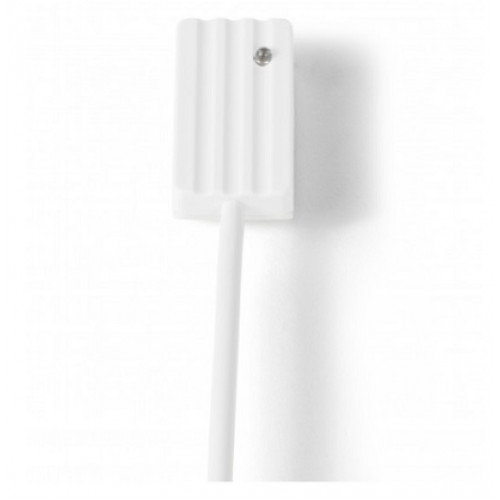

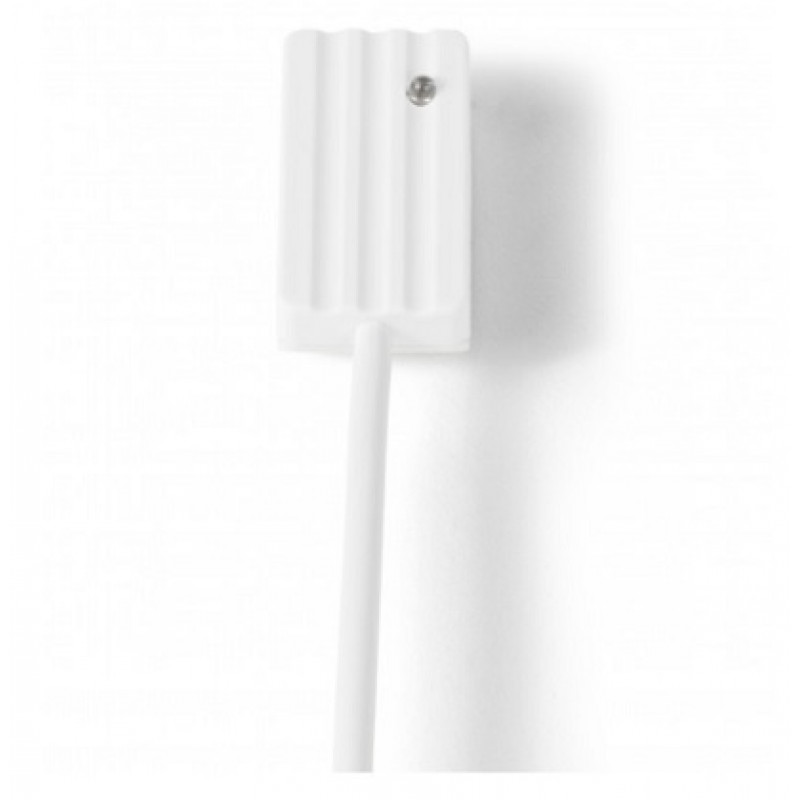

GB-5300-6, Glassbreak Detector,6m

GB-5300-6, Glassbreak Detector,6m

The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit. Secondary Packaging: 25 Units.

Key Features:

• Large coverage area
• Low currant consumption
• Visual alarm indication
• Versions with either current of relay outputs
• Version for laminated glass.

Specifications:

• Quiescent current: ˂1 µA (ca. 20 nA)
• Reset voltage: Max. 1 V
• Current consumption, quiescent: ˂1 µA (ca. 20 nA)
• Supply voltage: 3 – 16 V DC
• Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
• Environmental class: III
• Housing protection: IP67
• Housing material: S-B
• Operating temperature: -25 ~ 70 °C
• Cable length: 6 m
• Current consumption: 4 mA (6 VDC).

Note : Also Available in - Cable length: 10 m

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
