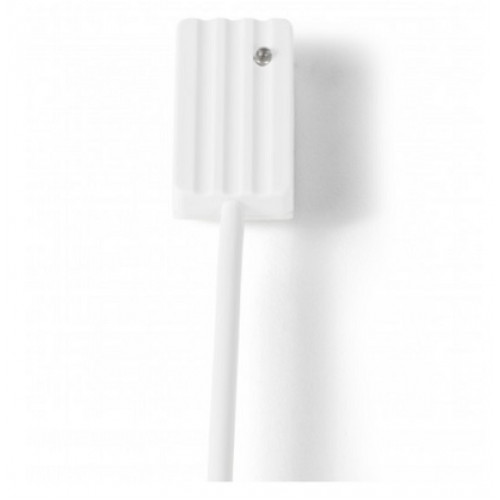

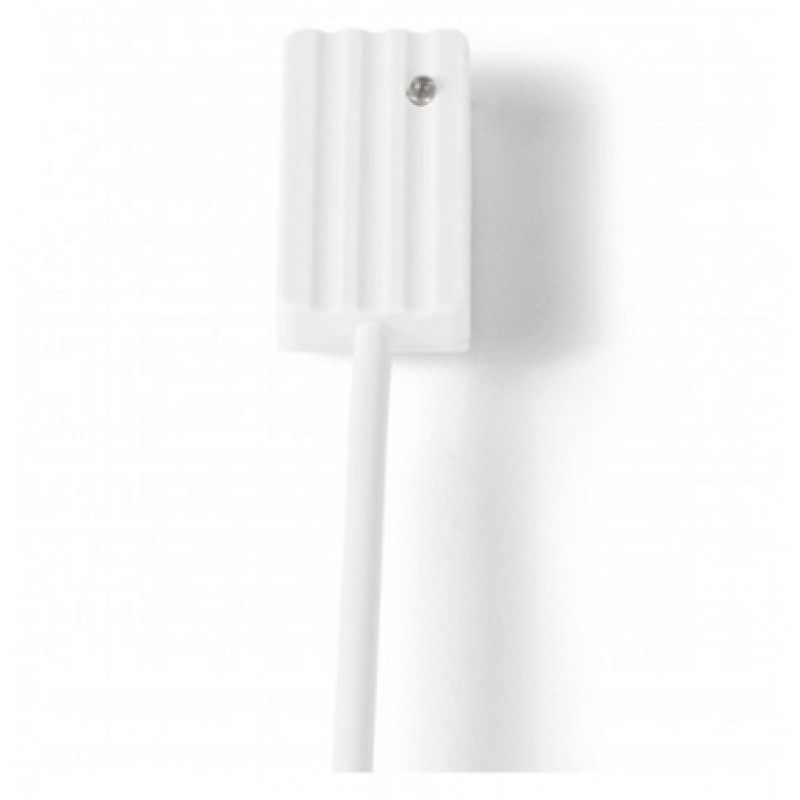

GB-5100-2, Glassbreak Detector,2m,Relay
- Brand:Vanderbilt
- Product Code:GB-5100-2
- Availability:Please Call or Email Us to Check Availability
GB-5100-2, Glassbreak Detector,2m,Relay
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The GB-5100 detectors with relay output and LED indication can be used in smaller installations (1-5 pcs). Secondary Packaging: 30 Units.
Key Features:
- Large coverage area
- Low currant consumption
- Visual alarm indication
- Versions with either current of relay outputs
- Version for laminated glass.
Specifications:
- Approval: VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
- Environmental class: III
- Housing protection: IP67
- Housing material: S-B
- Contact resistance: 5 Ω
- Reset voltage: Max. 2 V
- Operating temperature: -25 ~ 70 °C
- Range: Radius: 2 m
- Switching current: Max. 200 mA
- Switching voltage: Max. 24 V DC
- Supply voltage: 8 - 18 VDC
- Cable length: 2 m.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
