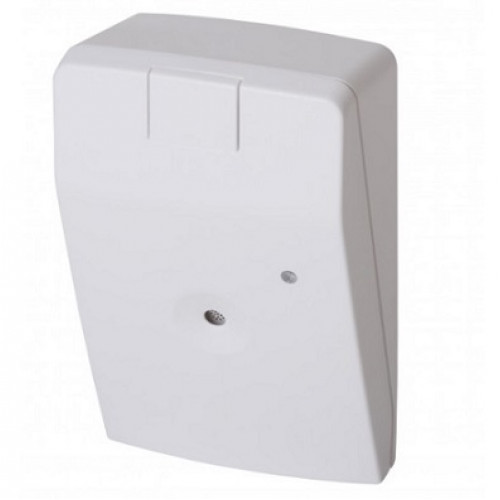

AGB800, Acoustic Glass Break Detector G2

AGB800, Acoustic Glass Break Detector G2

The AGB800 is a modern acoustic glass break detector giving an alarm when glass is broken due to attempted intrusion through doors, windows and glazed walls. The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room Compensation feature enables the detector to distinguish between glass breaking and general background noise.

Key Features:

• AGB800-AM EN Grade 3 approved
• AGB800 EN Grade 2 approved
• Anti-mask detection on AGB800-AM
• Operating radius up to 9.0 m
• Digital room compensation
• Detector can be tested and calibrated by using the glass break simulator ADT700
• Excellent immunity to false alarms
• 165° coverage enables multiple risk detection
• Compatible with wide a range of glass types and window designs
• Extended operating voltage range
• Alarm memory.

Specifications:

• Quiescent current: 9mA @ 12VDC 6mA @ 24VDC
• Operating temperature: +5 ~ +40ºC
• Current consumption, quiescent: 9mA @ 12VDC 6mA @ 24VDC
• Housing material: ABS plastic, white
• Environmental class: Class 1
• Operation temperature: +5....+40ºC
• Approval: EN50131-2-7-1 Grade 2 VdS Class B G117505
• Tamper contact: 50mA @ 50VDC
• Alarm output: 50mA @ 50VDC
• Range: 9.0m @ 165º
• Current consumption: Alarm - 9mA @ 12VDC Alarm - 6mA @ 24VDC
• Supply voltage: 7...30VDC
• Tamper switch: 50mA @ 50VDC.

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
