Bell, CSP-DDA-1/VR, One Station DDA Flush with Proximity System

Bell, CSP-DDA-1/VR, One Station DDA Flush with Proximity System

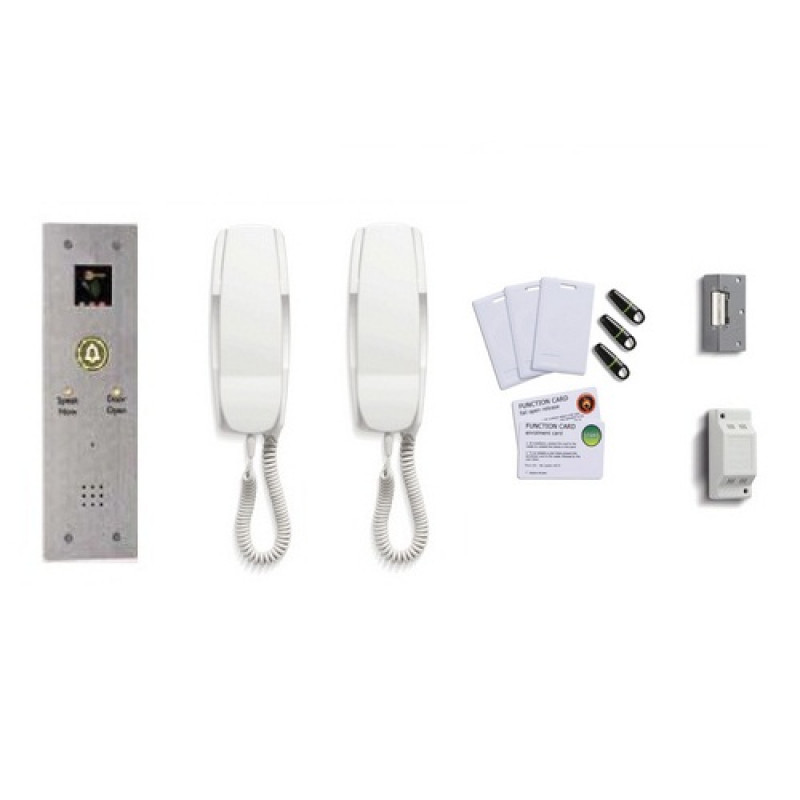

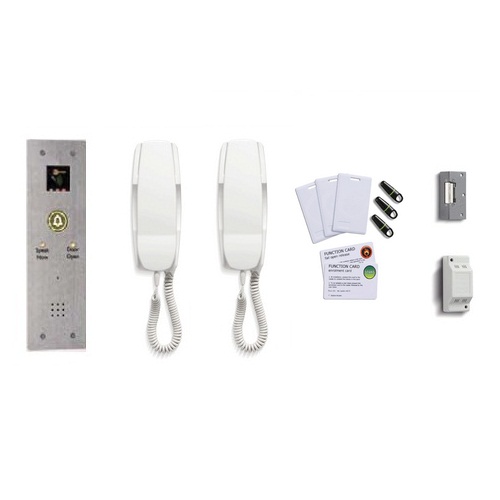

Bell complete DDA door entry systems that include a proximity access system as a secondary form of access control for resident use. For further information on the proximity system and for extra keyfob packs please refer to the Ôcombined door entry & proximity systems' section of the catalogue. Each system includes;

• DDA door panel with Paxton compact proximity reader.
• integral speech unit
• 12V DC power supply
• model 801 standard wall-mounting telephones
• model 203 fail-secure lock release
• starter fob pack (includes a 'pack enable' card, 'fail-open' card and 3 user keyfobs and shadow cards)
• full installation and programming instructions

2) Speech Unit Model 61

This compact unit is fitted to the entrance panel on all our current door entry systems(except as indicated below). The unit provides two-way speech and has an individual volume control for both microphone and speaker. This universal product can be powered from either 12V AC or 12V DC depending on the model of telephone used.

Dimensions: H = 97mm, W = 58mm, D = 24mm

3) Power Supplies

Model 340C (12v DC)
A wall-mounting fused 12v DC regulated power supply rated at 1.5 Amp for use on DC door entry systems and our Access Control systems. It can also be used for directly powering failsafe and continuously rated lock releases. Compliant with EN60950.

Dimensions: H = 140mm, W = 60mm, D = 53mm

Model PS4 (12v DC)
A wall-mounting fused 12v DC regulated power supply rated at 4 Amps for use on video entry systems and for powering high current door release mechanisms. Compliant with EN60950.

Dimensions: H = 110mm, W = 235mm, D = 80mm

4) 801 Standard Wall-Mounting Telephones

The model 801 is Bell Systems original door entry telephone.The 801 telephone continues to be the most popular in the UK market owing to its exceptional reliability and economical price.The model 801 telephone operates from both12v AC or 12v DC and is included in the standard model 900 and VRK audio door entry systems as well as the CS and CSP series of combined keypad and proximity door entry systems.

A 203 Fail-Secure Lock Release as a Standard.
