Dantech, DA423, 85 X 85mm 1G Stainless Steel - Proximity Request to Exit Switch
- Brand:Dantech
- Product Code:DA423
- Availability:Please Call or Email Us to Check Availability

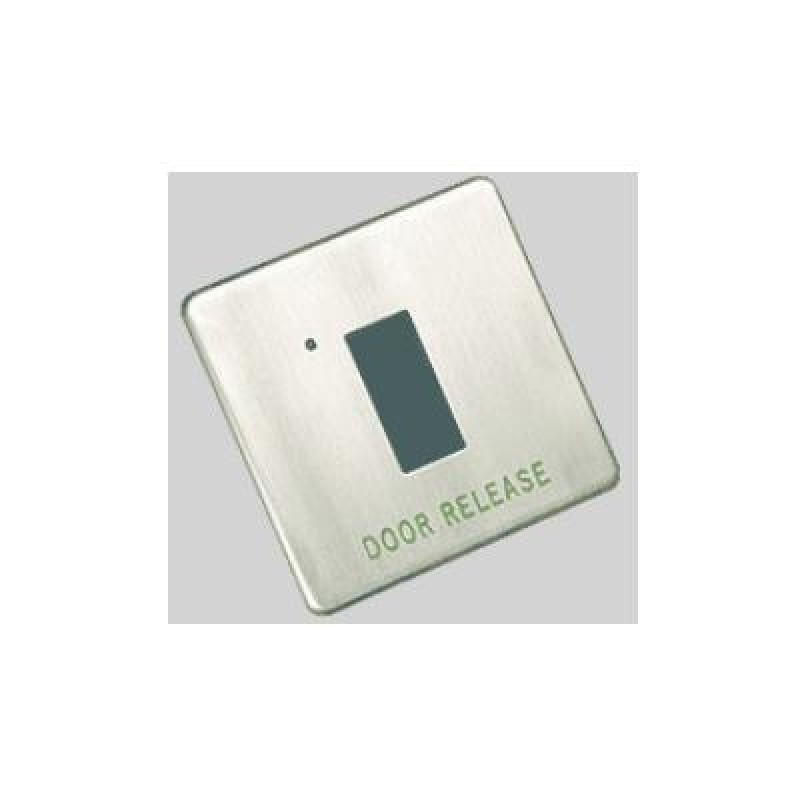

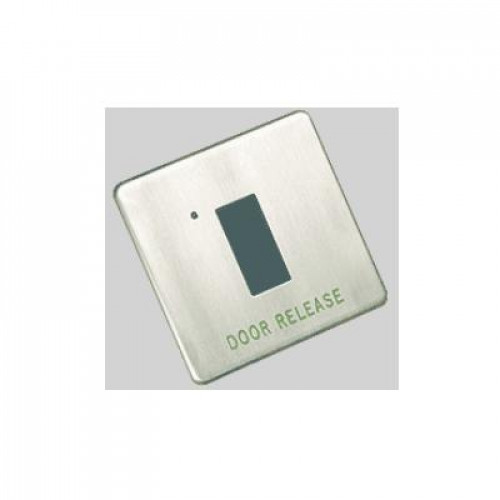

DA423, 85 X 85mm 1G Stainless Steel - Proximity Request to Exit Switch (Non Contact)
It consists of a Stainless Steel switch plate. This model has a black window instead of a symbol and has ‘DOOR RELEASE’ engraved at the bottom of the plate. The unit also has an integral sounder which can be disabled by cutting a link if not required.
Specifications:
- Supply Voltage - 12V DC
- Current Consumption (Quiescent) - 10mA
- Current Consumption (Operated) - 55mA
- Relay Type - SPCO
- Relay Rating - 24V DC @ 1A
- Indication - Green LED
- Sounder - Yes
- Finish - Brushed Stainless Steel
- Weight (Kg) - 0.110
- Dimensions W x H x D - 85 x 85 x 20
For more details, please refer with our attached datasheet.
