Dantech, DA123/FLED, Remote Setting/Panic Switch (Flush Mounting with LED)
- Brand:Dantech
- Product Code:DA123/FLED
- Availability:Please Call or Email to Checkout

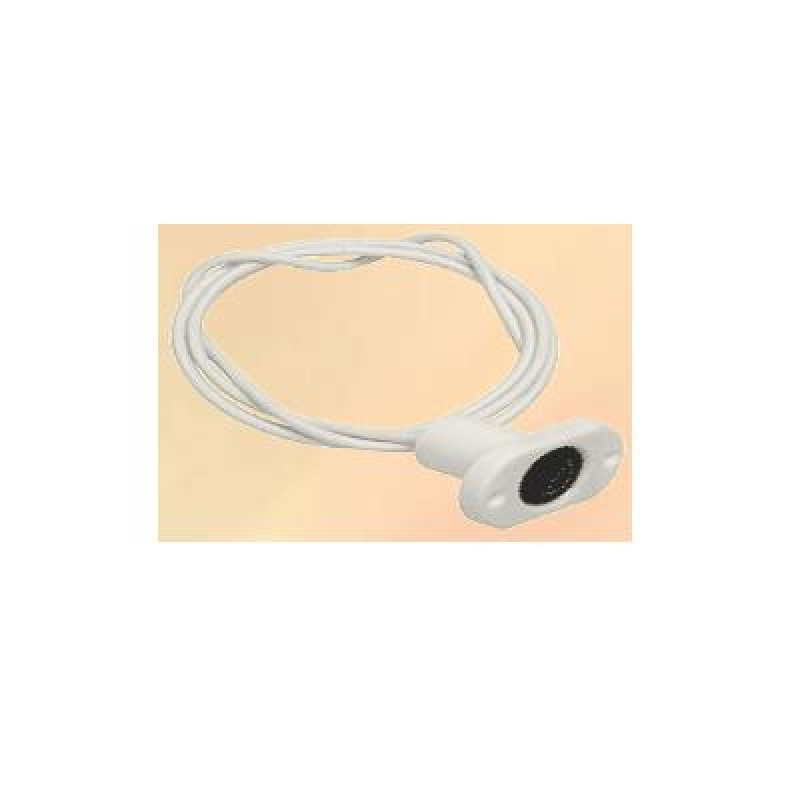

DA123/FLED, Remote Setting/Panic Switch (Flush Mounting with LED)
It consists of a Red LED concealed within the moulding to give visual indication of system setting. Remote Setting Switch. (flush mounting with LED). A highly water resistant final exit setting switch using a ‘normally open’ magnetically operated sealed dry reed switch. The push button diaphragm is a flexible moulding and there is no metal spring to corrode or break. Supplied with a neoprene gasket and hardened steel zinc plated fixing screws. Connections are via an integral 1metre long 4 core white flylead. It fits into a hole 19mm in diameter and 30mm deep.
All switch casings are white ABS with a black ALCRYN push button.
Specifications:
- Flush Mount - YES
- Surface Mount - NO
- LED - YES
- Buzzer - NO
- Switch Rating - 30V DC 100mA
- Weight (Kg) - 0.030
- Dimensions W x H x D - 28 x 45 x 35
For more details, please refer with our attached datasheet.
